Definition Type: ComplexType
Name: BODFailureMessageType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Meta.xsd
Abstract

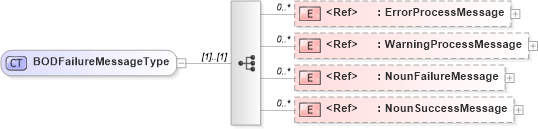

Collapse XSD Schema Diagram:
Drilldown into NounSuccessMessage in schema meta_xsd1 Drilldown into NounFailureMessage in schema meta_xsd1 Drilldown into WarningProcessMessage in schema meta_xsd1 Drilldown into ErrorProcessMessage in schema meta_xsd1XSD Diagram of BODFailureMessageType in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="BODFailureMessageType">
    <xsd:sequence>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ErrorProcessMessage" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="WarningProcessMessage" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="NounFailureMessage" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="NounSuccessMessage" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ErrorProcessMessage oagis:ErrorProcessMessage 0 unbounded
WarningProcessMessage oagis:WarningProcessMessage 0 unbounded
NounFailureMessage oagis:NounFailureMessage 0 unbounded
NounSuccessMessage oagis:NounSuccessMessage 0 unbounded
Collapse Derivation Tree:
Collapse References:
oagis:BODFailureMessage, oagis:PartialBODFailureMessage
