Definition Type: Element
Name: ErrorProcessMessage
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:MessageType
Containing Schema: Meta.xsd
Abstract
Documentation:
Error message encountered during processing.

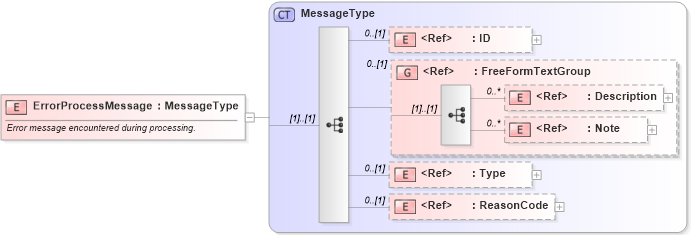

Collapse XSD Schema Diagram:
Drilldown into ReasonCode in schema fields_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into MessageType in schema meta_xsd1XSD Diagram of ErrorProcessMessage in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ErrorProcessMessage" type="MessageType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Error message encountered during processing.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
Type oagis:Type 0 (1)
ReasonCode oagis:ReasonCode 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
