Definition Type: ComplexType
Name: MessageType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Meta.xsd
Abstract

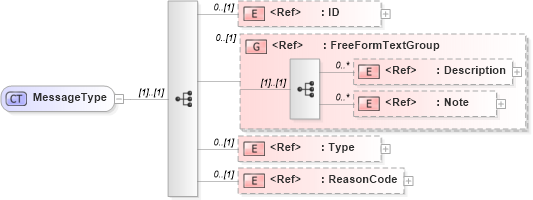

Collapse XSD Schema Diagram:
Drilldown into ReasonCode in schema fields_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into ID in schema fields_xsd1XSD Diagram of MessageType in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="MessageType">
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="ID" />
        <xsd:group minOccurs="0" ref="FreeFormTextGroup" />
        <xsd:element minOccurs="0" ref="Type" />
        <xsd:element minOccurs="0" ref="ReasonCode" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
Type oagis:Type 0 (1)
ReasonCode oagis:ReasonCode 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:ErrorProcessMessage, oagis:Message, oagis:ProcessMessage, oagis:WarningProcessMessage
