Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ChangeStatus
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:ChangeStatusType
Containing Schema: Meta.xsd
Abstract

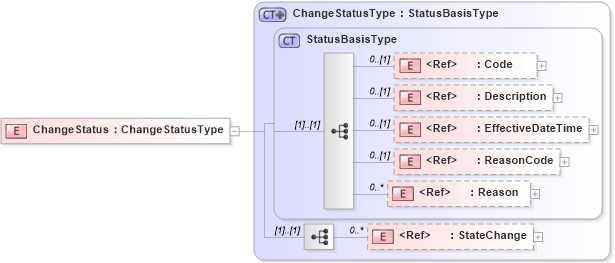

Collapse XSD Schema Diagram:
Drilldown into StateChange in schema meta_xsd1 Drilldown into Reason in schema fields_xsd1 Drilldown into ReasonCode in schema fields_xsd1 Drilldown into EffectiveDateTime in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into Code in schema fields_xsd1 Drilldown into StatusBasisType in schema meta_xsd1 Drilldown into ChangeStatusType in schema meta_xsd1XSD Diagram of ChangeStatus in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ChangeStatus" type="ChangeStatusType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code oagis:Code 0 (1)
Description oagis:Description 0 (1)
EffectiveDateTime oagis:EffectiveDateTime 0 (1)
ReasonCode oagis:ReasonCode 0 (1)
Reason oagis:Reason 0 unbounded
StateChange oagis:StateChange 0 unbounded
Collapse Derivation Tree:
