Definition Type: ComplexType
Name: StatusBasisType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Meta.xsd
Abstract

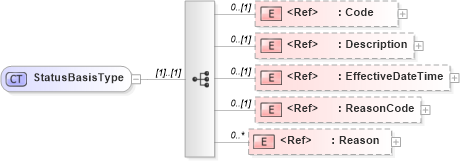

Collapse XSD Schema Diagram:
Drilldown into Reason in schema fields_xsd1 Drilldown into ReasonCode in schema fields_xsd1 Drilldown into EffectiveDateTime in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into Code in schema fields_xsd1XSD Diagram of StatusBasisType in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="StatusBasisType">
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="Code" />
        <xsd:element minOccurs="0" ref="Description" />
        <xsd:element minOccurs="0" ref="EffectiveDateTime" />
        <xsd:element minOccurs="0" ref="ReasonCode" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Reason" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code oagis:Code 0 (1)
Description oagis:Description 0 (1)
EffectiveDateTime oagis:EffectiveDateTime 0 (1)
ReasonCode oagis:ReasonCode 0 (1)
Reason oagis:Reason 0 unbounded
Collapse Derivation Tree:
Collapse References:
oagis:ChangeStatusTypeoagis:StatusABIEType,
