Definition Type: ComplexType
Name: StatusABIEType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:StatusBasisType
Containing Schema: Components.xsd
Abstract
Documentation:
StatusABIEType is logically derived from UN/CEFACT TBG17 ABIE StatusType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.

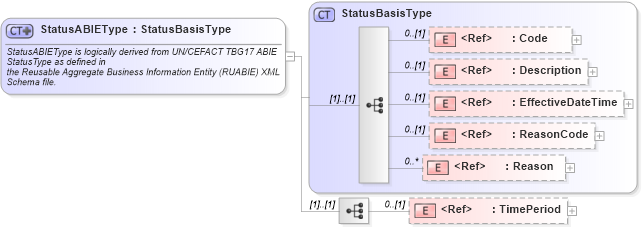

Collapse XSD Schema Diagram:
Drilldown into TimePeriod in schema components_xsd1 Drilldown into Reason in schema fields_xsd1 Drilldown into ReasonCode in schema fields_xsd1 Drilldown into EffectiveDateTime in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into Code in schema fields_xsd1 Drilldown into StatusBasisType in schema meta_xsd1XSD Diagram of StatusABIEType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="StatusABIEType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            StatusABIEType is logically derived from UN/CEFACT TBG17 ABIE StatusType as defined in
            the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.
         </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="StatusBasisType">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="TimePeriod" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code oagis:Code 0 (1)
Description oagis:Description 0 (1)
EffectiveDateTime oagis:EffectiveDateTime 0 (1)
ReasonCode oagis:ReasonCode 0 (1)
Reason oagis:Reason 0 unbounded
TimePeriod oagis:TimePeriod 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:AcknowledgementDetailType, star:DispositionStatusType, star:DocumentReferenceStatusType, star:OperationReferenceStatusType, star:OrderReferenceStatusType, oagis:StatusType
