Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: StatusType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:StatusABIEType
Containing Schema: Components.xsd
Abstract

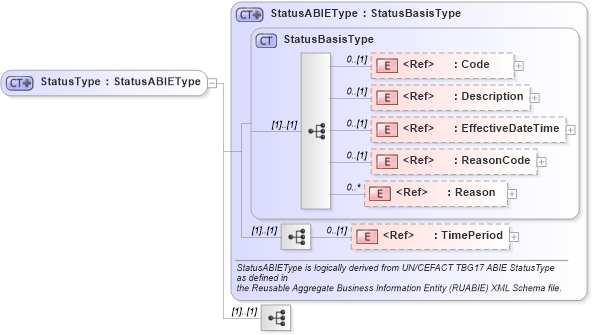

Collapse XSD Schema Diagram:
Drilldown into TimePeriod in schema components_xsd1 Drilldown into Reason in schema fields_xsd1 Drilldown into ReasonCode in schema fields_xsd1 Drilldown into EffectiveDateTime in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into Code in schema fields_xsd1 Drilldown into StatusBasisType in schema meta_xsd1 Drilldown into StatusABIEType in schema components_xsd1XSD Diagram of StatusType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="StatusType">
    <xsd:complexContent>
        <xsd:extension base="StatusABIEType">
            <xsd:sequence>
                <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code oagis:Code 0 (1)
Description oagis:Description 0 (1)
EffectiveDateTime oagis:EffectiveDateTime 0 (1)
ReasonCode oagis:ReasonCode 0 (1)
Reason oagis:Reason 0 unbounded
TimePeriod oagis:TimePeriod 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:ApprovalStatus, oagis:AssigneeStatus, oagis:BudgetStatus, oagis:Disposition, oagis:ItemStatus, oagis:RejectionStatus, oagis:RoutingDisposition, oagis:Status
