Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: CreditApplicationDetail
Namespace: http://www.starstandard.org/STAR/5
Type: star:CreditApplicationDetailType
Containing Schema: CreditApplication.xsd
Abstract
Documentation:
The Detail component represents the detail information of the Credit Application. One Detail is required for each Header.

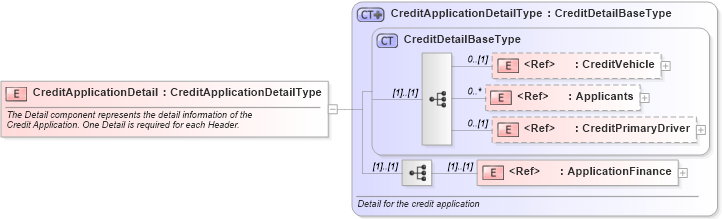

Collapse XSD Schema Diagram:
Drilldown into ApplicationFinance in schema components_xsd Drilldown into CreditPrimaryDriver in schema components_xsd Drilldown into Applicants in schema components_xsd Drilldown into CreditVehicle in schema components_xsd Drilldown into CreditDetailBaseType in schema components_xsd Drilldown into CreditApplicationDetailType in schema creditapplication_xsdXSD Diagram of CreditApplicationDetail in schema creditapplication_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="CreditApplicationDetail" type="CreditApplicationDetailType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org"> The Detail component represents the detail information of the
            Credit Application. One Detail is required for each Header.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CreditVehicle star:CreditVehicle 0 (1)
Applicants star:Applicants 0 unbounded
CreditPrimaryDriver star:CreditPrimaryDriver 0 (1)
ApplicationFinance star:ApplicationFinance (1) (1)
Collapse Derivation Tree:
