Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: CreditApplicationDetailType
Namespace: http://www.starstandard.org/STAR/5
Type: star:CreditDetailBaseType
Containing Schema: CreditApplication.xsd
Abstract
Documentation:
Detail for the credit application

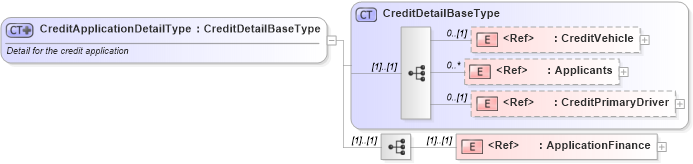

Collapse XSD Schema Diagram:
Drilldown into ApplicationFinance in schema components_xsd Drilldown into CreditPrimaryDriver in schema components_xsd Drilldown into Applicants in schema components_xsd Drilldown into CreditVehicle in schema components_xsd Drilldown into CreditDetailBaseType in schema components_xsdXSD Diagram of CreditApplicationDetailType in schema creditapplication_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CreditApplicationDetailType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Detail for the credit application</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="CreditDetailBaseType">
            <xsd:sequence>
                <xsd:element ref="ApplicationFinance">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org"> The Financing component represents finance information
                        for the vehicle in which the applicant is interested.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CreditVehicle star:CreditVehicle 0 (1)
Applicants star:Applicants 0 unbounded
CreditPrimaryDriver star:CreditPrimaryDriver 0 (1)
ApplicationFinance star:ApplicationFinance (1) (1)
Collapse Derivation Tree:
Collapse References:
star:CreditApplicationDetail
