Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: CustomerParty
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:CustomerPartyType
Containing Schema: Components.xsd
Abstract
Documentation:
Is the organization that is the end customer of the goods or services being provided in the associated transaction.

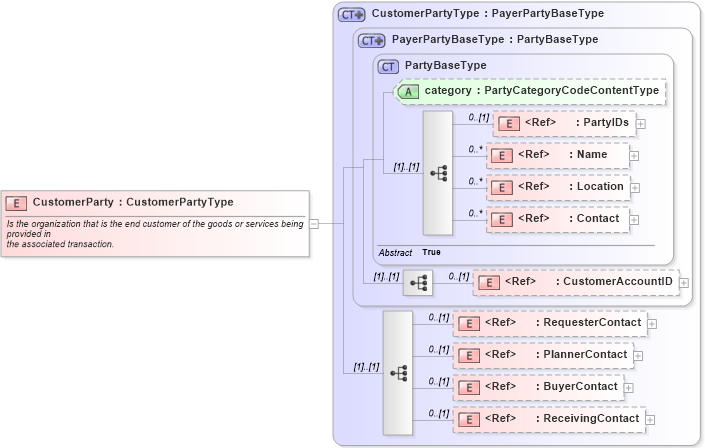

Collapse XSD Schema Diagram:
Drilldown into ReceivingContact in schema components_xsd1 Drilldown into BuyerContact in schema components_xsd1 Drilldown into PlannerContact in schema components_xsd1 Drilldown into RequesterContact in schema components_xsd1 Drilldown into CustomerAccountID in schema fields_xsd1 Drilldown into Contact in schema components_xsd1 Drilldown into Location in schema components_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into PartyIDs in schema components_xsd1 Drilldown into category in schema components_xsd1 Drilldown into PartyBaseType in schema components_xsd1 Drilldown into PayerPartyBaseType in schema components_xsd1 Drilldown into CustomerPartyType in schema components_xsd1XSD Diagram of CustomerParty in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="CustomerParty" type="CustomerPartyType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Is the organization that is the end customer of the goods or services being provided in
            the associated transaction.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs oagis:PartyIDs 0 (1)
Name oagis:Name 0 unbounded
Location oagis:Location 0 unbounded
Contact oagis:Contact 0 unbounded
CustomerAccountID oagis:CustomerAccountID 0 (1)
RequesterContact oagis:RequesterContact 0 (1)
PlannerContact oagis:PlannerContact 0 (1)
BuyerContact oagis:BuyerContact 0 (1)
ReceivingContact oagis:ReceivingContact 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
category oagis:category (Optional)
Collapse Derivation Tree:
