Definition Type: Element
Name: RequesterContact
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:SemanticContactType
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies the contact information for the requesting person, organization, department, or group on the associated document or line.

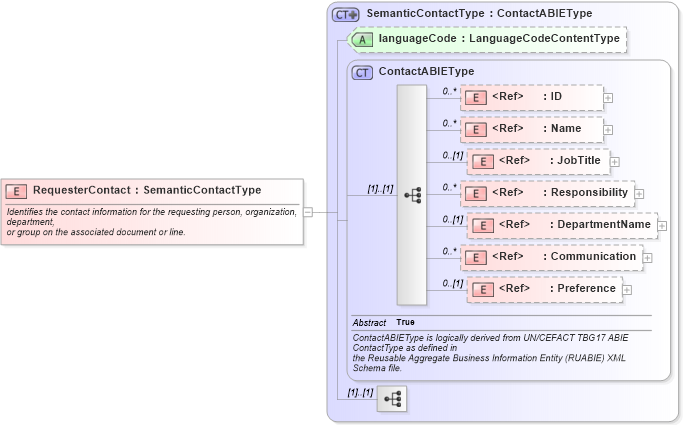

Collapse XSD Schema Diagram:
Drilldown into Preference in schema components_xsd1 Drilldown into Communication in schema components_xsd1 Drilldown into DepartmentName in schema fields_xsd1 Drilldown into Responsibility in schema fields_xsd1 Drilldown into JobTitle in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into ContactABIEType in schema components_xsd1 Drilldown into languageCode in schema components_xsd1 Drilldown into SemanticContactType in schema components_xsd1XSD Diagram of RequesterContact in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="RequesterContact" type="SemanticContactType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Identifies the contact information for the requesting person, organization, department,
            or group on the associated document or line.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
Name oagis:Name 0 unbounded
JobTitle oagis:JobTitle 0 (1)
Responsibility oagis:Responsibility 0 unbounded
DepartmentName oagis:DepartmentName 0 (1)
Communication oagis:Communication 0 unbounded
Preference oagis:Preference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode oagis:languageCode (Optional)
Collapse Derivation Tree:
