Docs for schema item ContactABIEType in Standards for Technology in Automotive Retail

Documentation for Standards for Technology in Automotive Retail

Definition Type:	ComplexType
Name:	ContactABIEType
Namespace:	http://www.openapplications.org/oagis/9
Containing Schema:	Components.xsd
Abstract	True
Documentation:	ContactABIEType is logically derived from UN/CEFACT TBG17 ABIE ContactType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.

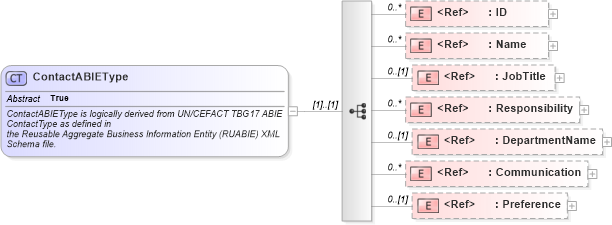

XSD Schema Diagram:

XSD Diagram of ContactABIEType in schema components_xsd1 (Standards for Technology in Automotive Retail)

XSD Schema Code:

<xsd:complexType abstract="true" name="ContactABIEType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            ContactABIEType is logically derived from UN/CEFACT TBG17 ABIE ContactType as defined in
            the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.
         </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ID" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Name" />
        <xsd:element minOccurs="0" ref="JobTitle" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Responsibility" />
        <xsd:element minOccurs="0" ref="DepartmentName" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Communication" />
        <xsd:element minOccurs="0" ref="Preference" />
    </xsd:sequence>
</xsd:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
ID	oagis:ID	0	unbounded
Name	oagis:Name	0	unbounded
JobTitle	oagis:JobTitle	0	(1)
Responsibility	oagis:Responsibility	0	unbounded
DepartmentName	oagis:DepartmentName	0	(1)
Communication	oagis:Communication	0	unbounded
Preference	oagis:Preference	0	(1)
