Definition Type: Element
Name: Dimension
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Type: rcm:DimensionType
Containing Schema: ReusableAggregateCoreComponent.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

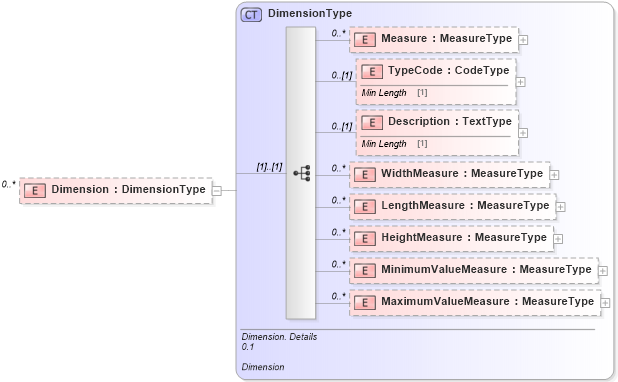

Collapse XSD Schema Diagram:
Drilldown into MaximumValueMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into MinimumValueMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into HeightMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into LengthMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into WidthMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into Description in schema reusableaggregatecorecomponent_xsd Drilldown into TypeCode in schema reusableaggregatecorecomponent_xsd Drilldown into Measure in schema reusableaggregatecorecomponent_xsd Drilldown into DimensionType in schema reusableaggregatecorecomponent_xsdXSD Diagram of Dimension in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Dimension" type="rcm:DimensionType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Measure rcm:Measure 0 unbounded
TypeCode rcm:TypeCode 0 (1)
Description rcm:Description 0 (1)
WidthMeasure rcm:WidthMeasure 0 unbounded
LengthMeasure rcm:LengthMeasure 0 unbounded
HeightMeasure rcm:HeightMeasure 0 unbounded
MinimumValueMeasure rcm:MinimumValueMeasure 0 unbounded
MaximumValueMeasure rcm:MaximumValueMeasure 0 unbounded
Collapse Derivation Tree:
