Definition Type: ComplexType
Name: DimensionType
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Containing Schema: ReusableAggregateCoreComponent.xsd
Abstract
Documentation:
Dimension. Details 0.1 Dimension

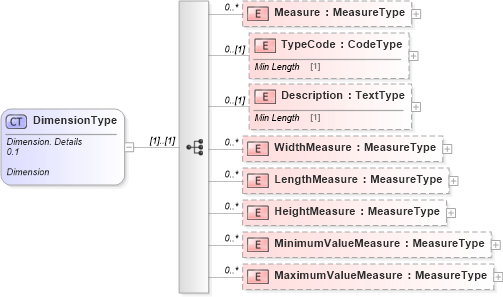

Collapse XSD Schema Diagram:
Drilldown into MaximumValueMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into MinimumValueMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into HeightMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into LengthMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into WidthMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into Description in schema reusableaggregatecorecomponent_xsd Drilldown into TypeCode in schema reusableaggregatecorecomponent_xsd Drilldown into Measure in schema reusableaggregatecorecomponent_xsdXSD Diagram of DimensionType in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DimensionType">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">
            <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dimension. Details</ccts:DictionaryEntryName>
            <ccts:VersionID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">0.1</ccts:VersionID>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:ObjectClassTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dimension</ccts:ObjectClassTermName>
            <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:BusinessTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:Example xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="Measure" type="udt:MeasureType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="TypeCode" type="udt:CodeType" minOccurs="0" />
        <xsd:element name="Description" type="udt:TextType" minOccurs="0" />
        <xsd:element name="WidthMeasure" type="udt:MeasureType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="LengthMeasure" type="udt:MeasureType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="HeightMeasure" type="udt:MeasureType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="MinimumValueMeasure" type="udt:MeasureType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="MaximumValueMeasure" type="udt:MeasureType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Measure rcm:Measure 0 unbounded
TypeCode rcm:TypeCode 0 (1)
Description rcm:Description 0 (1)
WidthMeasure rcm:WidthMeasure 0 unbounded
LengthMeasure rcm:LengthMeasure 0 unbounded
HeightMeasure rcm:HeightMeasure 0 unbounded
MinimumValueMeasure rcm:MinimumValueMeasure 0 unbounded
MaximumValueMeasure rcm:MaximumValueMeasure 0 unbounded
Collapse Derivation Tree:
Collapse References:
rcm:Dimension, rcm:Dimension
