Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: EmployeeBaseType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:PersonABIEType
Containing Schema: Components.xsd
Abstract True

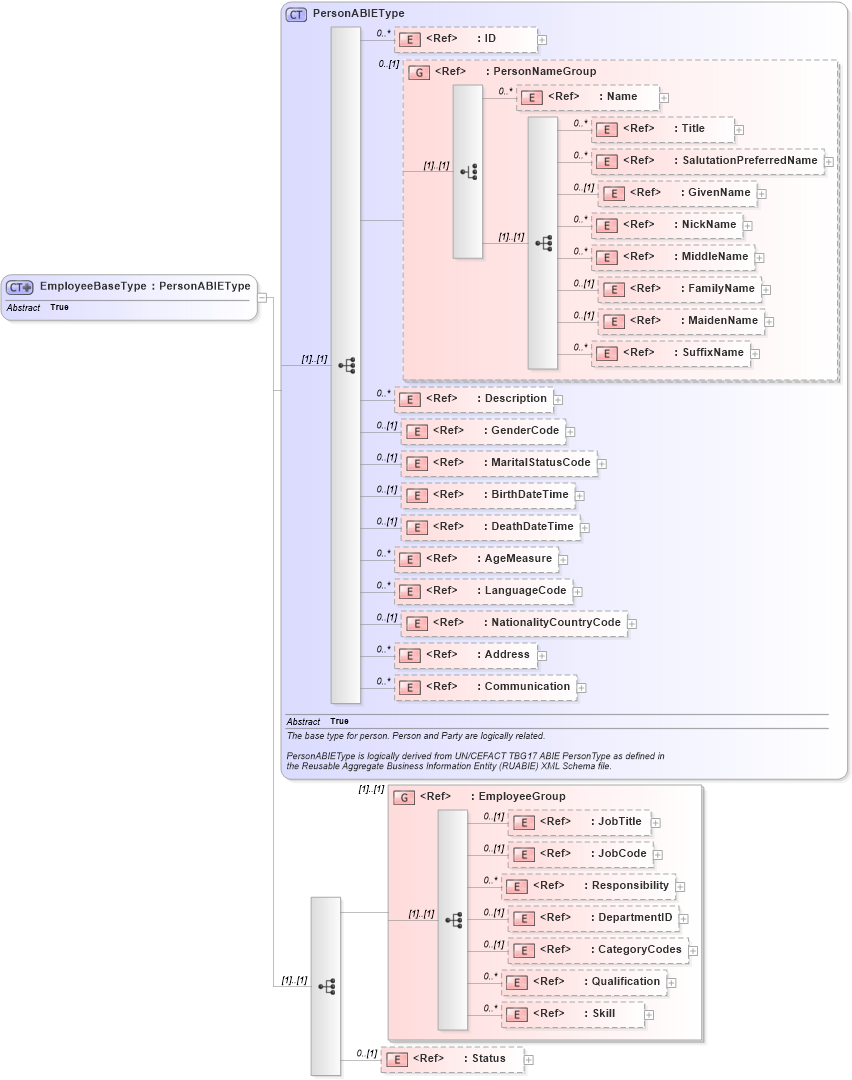

Collapse XSD Schema Diagram:
Drilldown into Status in schema components_xsd1 Drilldown into Skill in schema components_xsd1 Drilldown into Qualification in schema components_xsd1 Drilldown into CategoryCodes in schema components_xsd1 Drilldown into DepartmentID in schema fields_xsd1 Drilldown into Responsibility in schema fields_xsd1 Drilldown into JobCode in schema fields_xsd1 Drilldown into JobTitle in schema fields_xsd1 Drilldown into EmployeeGroup in schema components_xsd1 Drilldown into Communication in schema components_xsd1 Drilldown into Address in schema components_xsd1 Drilldown into NationalityCountryCode in schema fields_xsd1 Drilldown into LanguageCode in schema fields_xsd1 Drilldown into AgeMeasure in schema fields_xsd1 Drilldown into DeathDateTime in schema fields_xsd1 Drilldown into BirthDateTime in schema fields_xsd1 Drilldown into MaritalStatusCode in schema fields_xsd1 Drilldown into GenderCode in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into SuffixName in schema fields_xsd1 Drilldown into MaidenName in schema fields_xsd1 Drilldown into FamilyName in schema fields_xsd1 Drilldown into MiddleName in schema fields_xsd1 Drilldown into NickName in schema fields_xsd1 Drilldown into GivenName in schema fields_xsd1 Drilldown into SalutationPreferredName in schema components_xsd1 Drilldown into Title in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into PersonNameGroup in schema components_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into PersonABIEType in schema components_xsd1XSD Diagram of EmployeeBaseType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType abstract="true" name="EmployeeBaseType">
    <xsd:complexContent>
        <xsd:extension base="PersonABIEType">
            <xsd:sequence>
                <xsd:group ref="EmployeeGroup" />
                <xsd:element minOccurs="0" ref="Status">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">
                        This is a code or identifier that describes the current work status of an
                        employee. It indicates the condition of the employment of the employee. Also
                        known as the employee category. Examples are: Active, Inactive, No longer
                        employed, Part time, Full time, Temporary, Casual
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
Name oagis:Name 0 unbounded
Title oagis:Title 0 unbounded
SalutationPreferredName oagis:SalutationPreferredName 0 unbounded
GivenName oagis:GivenName 0 (1)
NickName oagis:NickName 0 unbounded
MiddleName oagis:MiddleName 0 unbounded
FamilyName oagis:FamilyName 0 (1)
MaidenName oagis:MaidenName 0 (1)
SuffixName oagis:SuffixName 0 unbounded
Description oagis:Description 0 unbounded
GenderCode oagis:GenderCode 0 (1)
MaritalStatusCode oagis:MaritalStatusCode 0 (1)
BirthDateTime oagis:BirthDateTime 0 (1)
DeathDateTime oagis:DeathDateTime 0 (1)
AgeMeasure oagis:AgeMeasure 0 unbounded
LanguageCode oagis:LanguageCode 0 unbounded
NationalityCountryCode oagis:NationalityCountryCode 0 (1)
Address oagis:Address 0 unbounded
Communication oagis:Communication 0 unbounded
JobTitle oagis:JobTitle 0 (1)
JobCode oagis:JobCode 0 (1)
Responsibility oagis:Responsibility 0 unbounded
DepartmentID oagis:DepartmentID 0 (1)
CategoryCodes oagis:CategoryCodes 0 (1)
Qualification oagis:Qualification 0 unbounded
Skill oagis:Skill 0 unbounded
Status oagis:Status 0 (1)
<xs:group> oagis:PersonNameGroup 0 (1)
<xs:group> oagis:EmployeeGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
oagis:EmployeeType
