Definition Type: ComplexType
Name: HeaderType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract True
Documentation:
The abstract Header type that is the basis for all non-statusable OAGIS Document Headers

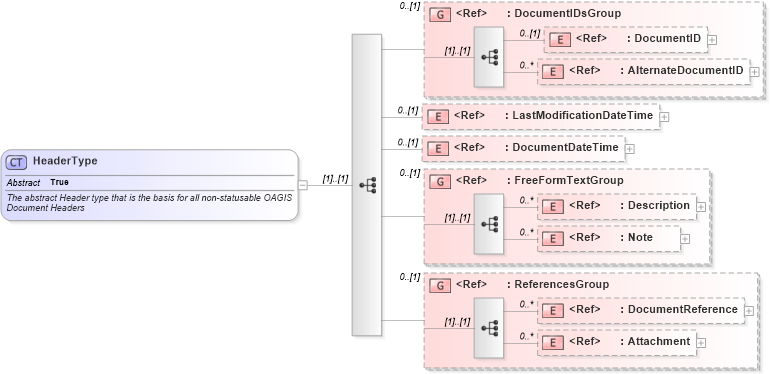

Collapse XSD Schema Diagram:
Drilldown into Attachment in schema components_xsd1 Drilldown into DocumentReference in schema components_xsd1 Drilldown into ReferencesGroup in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into LastModificationDateTime in schema fields_xsd1 Drilldown into AlternateDocumentID in schema components_xsd1 Drilldown into DocumentID in schema components_xsd1 Drilldown into DocumentIDsGroup in schema components_xsd1XSD Diagram of HeaderType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType abstract="true" name="HeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            The abstract Header type that is the basis for all non-statusable OAGIS Document Headers
         </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group minOccurs="0" ref="DocumentIDsGroup" />
        <xsd:element minOccurs="0" ref="LastModificationDateTime" />
        <xsd:element minOccurs="0" ref="DocumentDateTime" />
        <xsd:group minOccurs="0" ref="FreeFormTextGroup" />
        <xsd:group minOccurs="0" ref="ReferencesGroup" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID oagis:DocumentID 0 (1)
AlternateDocumentID oagis:AlternateDocumentID 0 unbounded
LastModificationDateTime oagis:LastModificationDateTime 0 (1)
DocumentDateTime oagis:DocumentDateTime 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
DocumentReference oagis:DocumentReference 0 unbounded
Attachment oagis:Attachment 0 unbounded
<xs:group> oagis:DocumentIDsGroup 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
<xs:group> oagis:ReferencesGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:PriceListHeaderTypeoagis:ProductRequirementBaseType, oagis:StatusEnabledHeaderType,
