Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ProcurementHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:RequestHeaderType
Containing Schema: OrderManagementComponents.xsd
Abstract

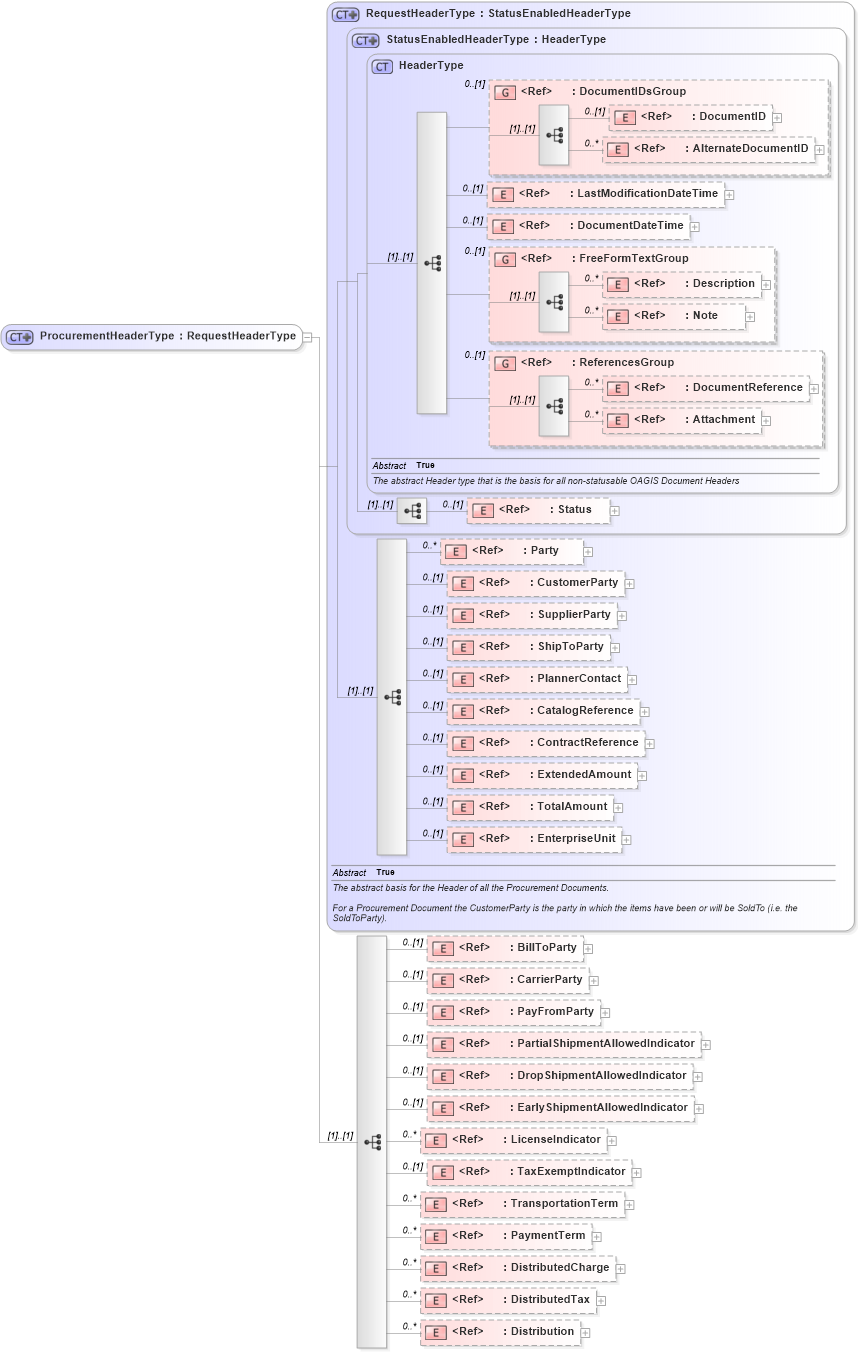

Collapse XSD Schema Diagram:
Drilldown into Distribution in schema components_xsd1 Drilldown into DistributedTax in schema components_xsd1 Drilldown into DistributedCharge in schema components_xsd1 Drilldown into PaymentTerm in schema components_xsd1 Drilldown into TransportationTerm in schema components_xsd1 Drilldown into TaxExemptIndicator in schema fields_xsd1 Drilldown into LicenseIndicator in schema fields_xsd1 Drilldown into EarlyShipmentAllowedIndicator in schema fields_xsd1 Drilldown into DropShipmentAllowedIndicator in schema fields_xsd1 Drilldown into PartialShipmentAllowedIndicator in schema fields_xsd1 Drilldown into PayFromParty in schema components_xsd1 Drilldown into CarrierParty in schema components_xsd1 Drilldown into BillToParty in schema components_xsd1 Drilldown into EnterpriseUnit in schema components_xsd1 Drilldown into TotalAmount in schema fields_xsd1 Drilldown into ExtendedAmount in schema fields_xsd1 Drilldown into ContractReference in schema components_xsd1 Drilldown into CatalogReference in schema components_xsd1 Drilldown into PlannerContact in schema components_xsd1 Drilldown into ShipToParty in schema components_xsd1 Drilldown into SupplierParty in schema components_xsd1 Drilldown into CustomerParty in schema components_xsd1 Drilldown into Party in schema components_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into Attachment in schema components_xsd1 Drilldown into DocumentReference in schema components_xsd1 Drilldown into ReferencesGroup in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into LastModificationDateTime in schema fields_xsd1 Drilldown into AlternateDocumentID in schema components_xsd1 Drilldown into DocumentID in schema components_xsd1 Drilldown into DocumentIDsGroup in schema components_xsd1 Drilldown into HeaderType in schema components_xsd1 Drilldown into StatusEnabledHeaderType in schema components_xsd1 Drilldown into RequestHeaderType in schema ordermanagementcomponents_xsdXSD Diagram of ProcurementHeaderType in schema ordermanagementcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ProcurementHeaderType">
    <xsd:complexContent>
        <xsd:extension base="RequestHeaderType">
            <xsd:sequence>
                <xsd:element ref="BillToParty" minOccurs="0" />
                <xsd:element ref="CarrierParty" minOccurs="0" />
                <xsd:element ref="PayFromParty" minOccurs="0" />
                <xsd:element ref="PartialShipmentAllowedIndicator" minOccurs="0" />
                <xsd:element ref="DropShipmentAllowedIndicator" minOccurs="0" />
                <xsd:element ref="EarlyShipmentAllowedIndicator" minOccurs="0" />
                <xsd:element ref="LicenseIndicator" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="TaxExemptIndicator" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Specifies whether the associated element is exempt from withholding taxes.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="TransportationTerm" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="PaymentTerm" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="DistributedCharge" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="DistributedTax" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID oagis:DocumentID 0 (1)
AlternateDocumentID oagis:AlternateDocumentID 0 unbounded
LastModificationDateTime oagis:LastModificationDateTime 0 (1)
DocumentDateTime oagis:DocumentDateTime 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
DocumentReference oagis:DocumentReference 0 unbounded
Attachment oagis:Attachment 0 unbounded
Status oagis:Status 0 (1)
Party oagis:Party 0 unbounded
CustomerParty oagis:CustomerParty 0 (1)
SupplierParty oagis:SupplierParty 0 (1)
ShipToParty oagis:ShipToParty 0 (1)
PlannerContact oagis:PlannerContact 0 (1)
CatalogReference oagis:CatalogReference 0 (1)
ContractReference oagis:ContractReference 0 (1)
ExtendedAmount oagis:ExtendedAmount 0 (1)
TotalAmount oagis:TotalAmount 0 (1)
EnterpriseUnit oagis:EnterpriseUnit 0 (1)
BillToParty oagis:BillToParty 0 (1)
CarrierParty oagis:CarrierParty 0 (1)
PayFromParty oagis:PayFromParty 0 (1)
PartialShipmentAllowedIndicator oagis:PartialShipmentAllowedIndicator 0 (1)
DropShipmentAllowedIndicator oagis:DropShipmentAllowedIndicator 0 (1)
EarlyShipmentAllowedIndicator oagis:EarlyShipmentAllowedIndicator 0 (1)
LicenseIndicator oagis:LicenseIndicator 0 unbounded
TaxExemptIndicator oagis:TaxExemptIndicator 0 (1)
TransportationTerm oagis:TransportationTerm 0 unbounded
PaymentTerm oagis:PaymentTerm 0 unbounded
DistributedCharge oagis:DistributedCharge 0 unbounded
DistributedTax oagis:DistributedTax 0 unbounded
Distribution oagis:Distribution 0 unbounded
<xs:group> oagis:DocumentIDsGroup 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
<xs:group> oagis:ReferencesGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:OrderHeaderType
