Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: CatalogReference
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:DocumentReferenceType
Containing Schema: Components.xsd
Abstract
Documentation:
Is a reference to a catalogue.

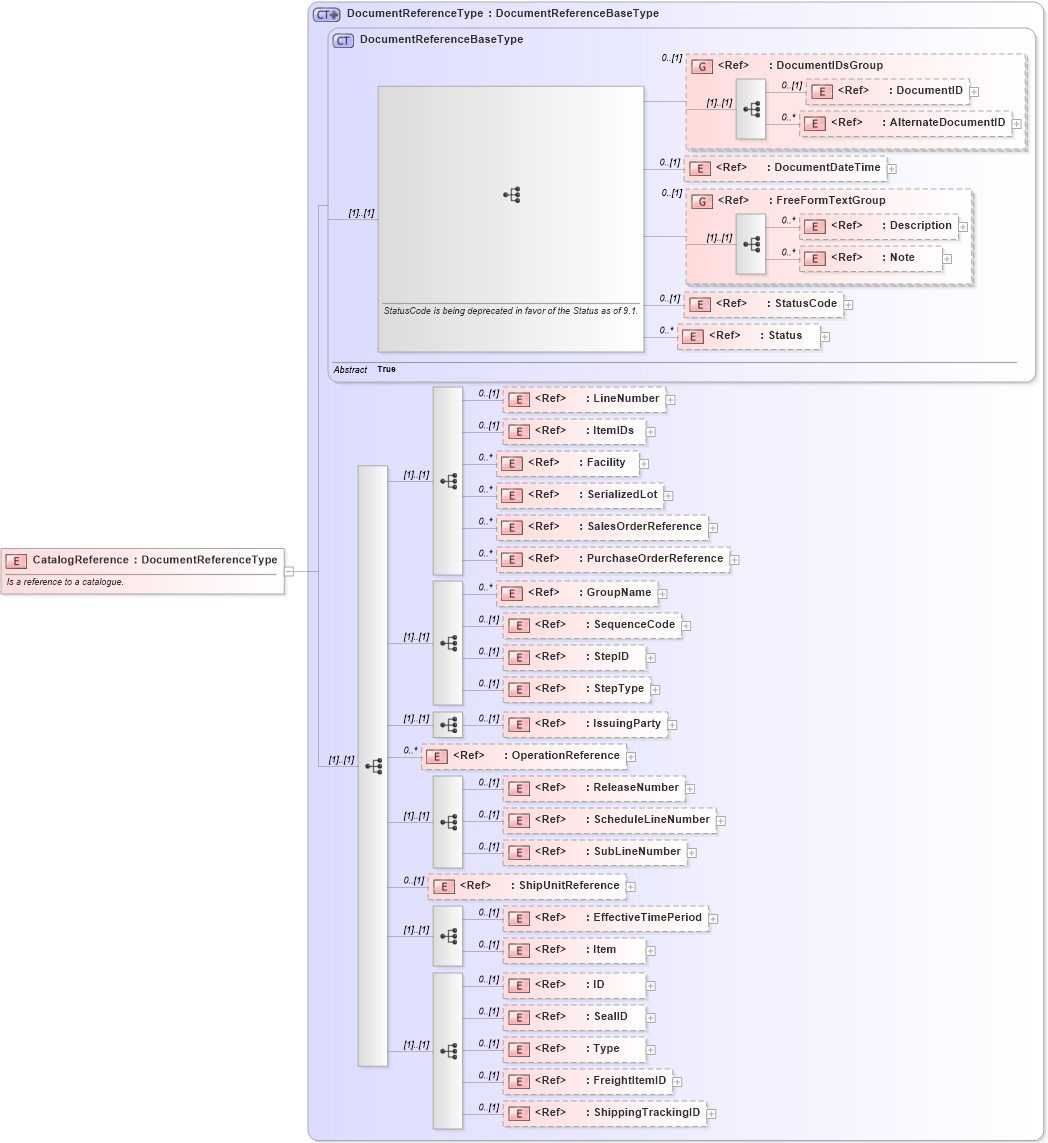

Collapse XSD Schema Diagram:
Drilldown into ShippingTrackingID in schema fields_xsd1 Drilldown into FreightItemID in schema fields_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into SealID in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into Item in schema components_xsd1 Drilldown into EffectiveTimePeriod in schema components_xsd1 Drilldown into ShipUnitReference in schema components_xsd1 Drilldown into SubLineNumber in schema fields_xsd1 Drilldown into ScheduleLineNumber in schema fields_xsd1 Drilldown into ReleaseNumber in schema fields_xsd1 Drilldown into OperationReference in schema components_xsd1 Drilldown into IssuingParty in schema components_xsd1 Drilldown into StepType in schema fields_xsd1 Drilldown into StepID in schema fields_xsd1 Drilldown into SequenceCode in schema fields_xsd1 Drilldown into GroupName in schema fields_xsd1 Drilldown into PurchaseOrderReference in schema components_xsd1 Drilldown into SalesOrderReference in schema components_xsd1 Drilldown into SerializedLot in schema components_xsd1 Drilldown into Facility in schema components_xsd1 Drilldown into ItemIDs in schema components_xsd1 Drilldown into LineNumber in schema fields_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into StatusCode in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into AlternateDocumentID in schema components_xsd1 Drilldown into DocumentID in schema components_xsd1 Drilldown into DocumentIDsGroup in schema components_xsd1 Drilldown into DocumentReferenceBaseType in schema components_xsd1 Drilldown into DocumentReferenceType in schema components_xsd1XSD Diagram of CatalogReference in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="CatalogReference" type="DocumentReferenceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Is a reference to a catalogue.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID oagis:DocumentID 0 (1)
AlternateDocumentID oagis:AlternateDocumentID 0 unbounded
DocumentDateTime oagis:DocumentDateTime 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
StatusCode oagis:StatusCode 0 (1)
Status oagis:Status 0 unbounded
LineNumber oagis:LineNumber 0 (1)
ItemIDs oagis:ItemIDs 0 (1)
Facility oagis:Facility 0 unbounded
SerializedLot oagis:SerializedLot 0 unbounded
SalesOrderReference oagis:SalesOrderReference 0 unbounded
PurchaseOrderReference oagis:PurchaseOrderReference 0 unbounded
GroupName oagis:GroupName 0 unbounded
SequenceCode oagis:SequenceCode 0 (1)
StepID oagis:StepID 0 (1)
StepType oagis:StepType 0 (1)
IssuingParty oagis:IssuingParty 0 (1)
OperationReference oagis:OperationReference 0 unbounded
ReleaseNumber oagis:ReleaseNumber 0 (1)
ScheduleLineNumber oagis:ScheduleLineNumber 0 (1)
SubLineNumber oagis:SubLineNumber 0 (1)
ShipUnitReference oagis:ShipUnitReference 0 (1)
EffectiveTimePeriod oagis:EffectiveTimePeriod 0 (1)
Item oagis:Item 0 (1)
ID oagis:ID 0 (1)
SealID oagis:SealID 0 (1)
Type oagis:Type 0 (1)
FreightItemID oagis:FreightItemID 0 (1)
ShippingTrackingID oagis:ShippingTrackingID 0 (1)
<xs:group> oagis:DocumentIDsGroup 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
