Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: SerializedLot
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:SerializedLotType
Containing Schema: Components.xsd
Abstract
Documentation:
Is the Lot and Setial numbers for the items contained in the associated component by identifing the number of items and the uniques serial number of those items that belong to a given Lot.

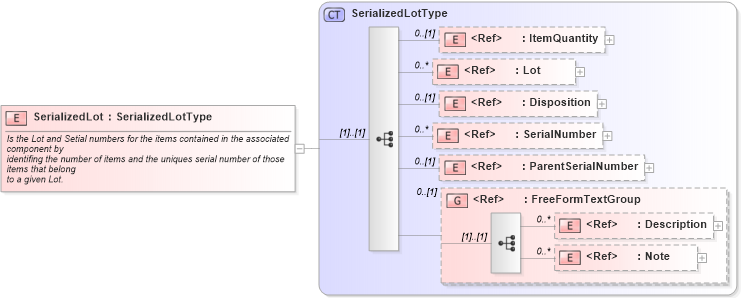

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into ParentSerialNumber in schema fields_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Disposition in schema components_xsd1 Drilldown into Lot in schema components_xsd1 Drilldown into ItemQuantity in schema fields_xsd1 Drilldown into SerializedLotType in schema components_xsd1XSD Diagram of SerializedLot in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="SerializedLot" type="SerializedLotType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Is the Lot and Setial numbers for the items contained in the associated component by
            identifing the number of items and the uniques serial number of those items that belong
            to a given Lot.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemQuantity oagis:ItemQuantity 0 (1)
Lot oagis:Lot 0 unbounded
Disposition oagis:Disposition 0 (1)
SerialNumber oagis:SerialNumber 0 unbounded
ParentSerialNumber oagis:ParentSerialNumber 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
