Definition Type: ComplexType
Name: SerializedLotType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

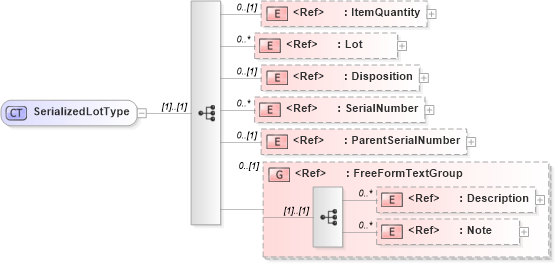

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into ParentSerialNumber in schema fields_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Disposition in schema components_xsd1 Drilldown into Lot in schema components_xsd1 Drilldown into ItemQuantity in schema fields_xsd1XSD Diagram of SerializedLotType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SerializedLotType">
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="ItemQuantity" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Lot">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  Indicates the Lot associated with the LotSerial.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="Disposition" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="SerialNumber" />
        <xsd:element minOccurs="0" ref="ParentSerialNumber" />
        <xsd:group minOccurs="0" ref="FreeFormTextGroup" />
        <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemQuantity oagis:ItemQuantity 0 (1)
Lot oagis:Lot 0 unbounded
Disposition oagis:Disposition 0 (1)
SerialNumber oagis:SerialNumber 0 unbounded
ParentSerialNumber oagis:ParentSerialNumber 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:SerializedLot
