Definition Type: ComplexType
Name: DocumentReferenceType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:DocumentReferenceBaseType
Containing Schema: Components.xsd
Abstract

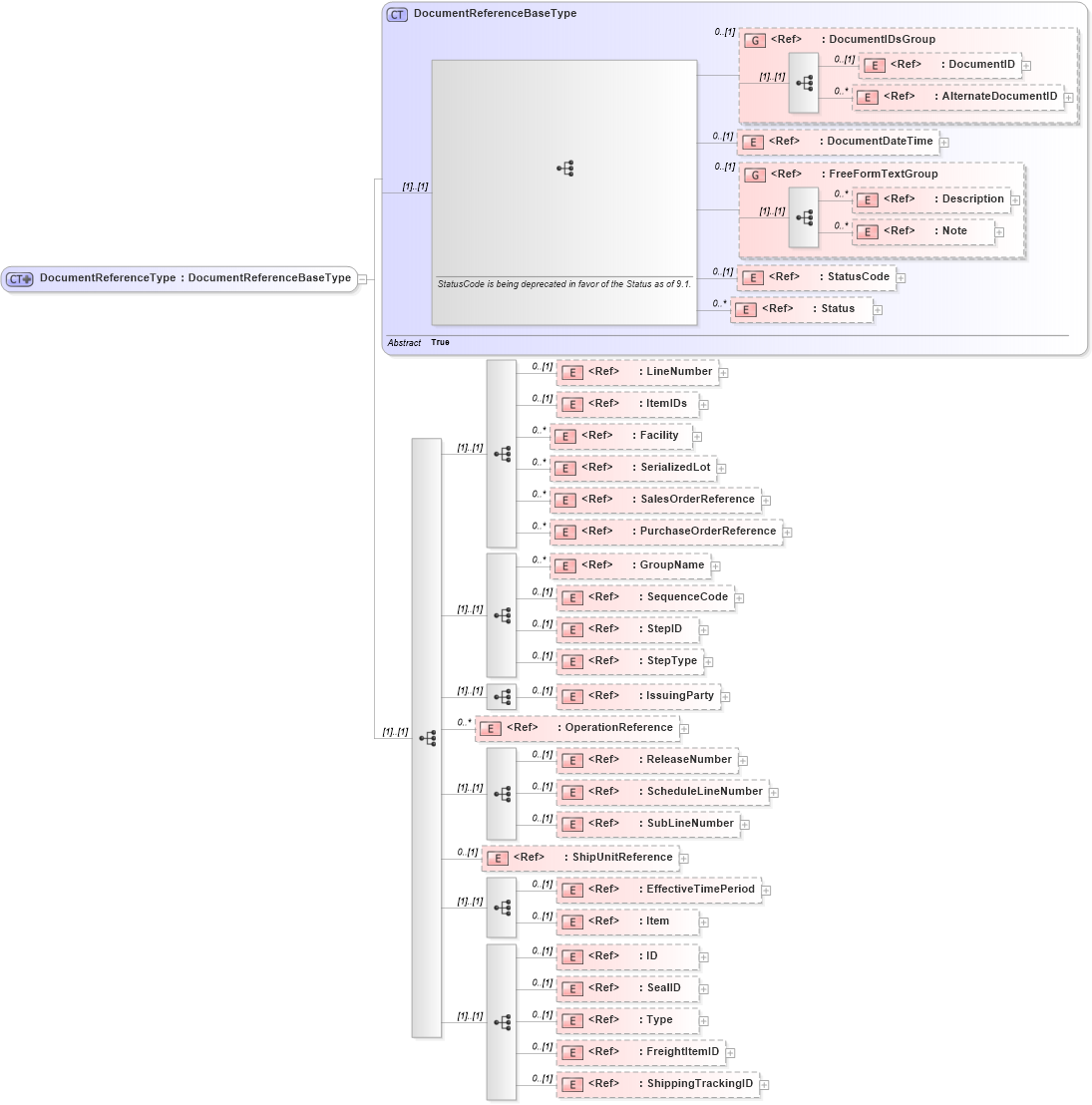

Collapse XSD Schema Diagram:
Drilldown into ShippingTrackingID in schema fields_xsd1 Drilldown into FreightItemID in schema fields_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into SealID in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into Item in schema components_xsd1 Drilldown into EffectiveTimePeriod in schema components_xsd1 Drilldown into ShipUnitReference in schema components_xsd1 Drilldown into SubLineNumber in schema fields_xsd1 Drilldown into ScheduleLineNumber in schema fields_xsd1 Drilldown into ReleaseNumber in schema fields_xsd1 Drilldown into OperationReference in schema components_xsd1 Drilldown into IssuingParty in schema components_xsd1 Drilldown into StepType in schema fields_xsd1 Drilldown into StepID in schema fields_xsd1 Drilldown into SequenceCode in schema fields_xsd1 Drilldown into GroupName in schema fields_xsd1 Drilldown into PurchaseOrderReference in schema components_xsd1 Drilldown into SalesOrderReference in schema components_xsd1 Drilldown into SerializedLot in schema components_xsd1 Drilldown into Facility in schema components_xsd1 Drilldown into ItemIDs in schema components_xsd1 Drilldown into LineNumber in schema fields_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into StatusCode in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into AlternateDocumentID in schema components_xsd1 Drilldown into DocumentID in schema components_xsd1 Drilldown into DocumentIDsGroup in schema components_xsd1 Drilldown into DocumentReferenceBaseType in schema components_xsd1XSD Diagram of DocumentReferenceType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DocumentReferenceType">
    <xsd:complexContent>
        <xsd:extension base="DocumentReferenceBaseType">
            <xsd:sequence>
                <xsd:sequence>
                    <xsd:element minOccurs="0" ref="LineNumber" />
                    <xsd:element minOccurs="0" ref="ItemIDs" />
                    <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Facility" />
                    <xsd:element maxOccurs="unbounded" minOccurs="0" ref="SerializedLot" />
                    <xsd:element maxOccurs="unbounded" minOccurs="0" ref="SalesOrderReference" />
                    <xsd:element maxOccurs="unbounded" minOccurs="0" ref="PurchaseOrderReference" />
                </xsd:sequence>
                <xsd:sequence>
                    <xsd:element maxOccurs="unbounded" minOccurs="0" ref="GroupName" />
                    <xsd:element minOccurs="0" ref="SequenceCode" />
                    <xsd:element minOccurs="0" ref="StepID" />
                    <xsd:element minOccurs="0" ref="StepType" />
                </xsd:sequence>
                <xsd:sequence>
                    <xsd:element minOccurs="0" ref="IssuingParty">
                        <xsd:annotation>
                            <xsd:documentation source="http://www.openapplications.org/oagis/9">
                        Identifies the Party that issued the invoice
                     </xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="OperationReference" />
                <xsd:sequence>
                    <xsd:element minOccurs="0" ref="ReleaseNumber" />
                    <xsd:element minOccurs="0" ref="ScheduleLineNumber" />
                    <xsd:element minOccurs="0" ref="SubLineNumber" />
                </xsd:sequence>
                <xsd:element minOccurs="0" ref="ShipUnitReference" />
                <xsd:sequence>
                    <xsd:element minOccurs="0" ref="EffectiveTimePeriod" />
                    <xsd:element minOccurs="0" ref="Item" />
                </xsd:sequence>
                <xsd:sequence>
                    <xsd:element minOccurs="0" ref="ID" />
                    <xsd:element minOccurs="0" ref="SealID" />
                    <xsd:element minOccurs="0" ref="Type" />
                    <xsd:element minOccurs="0" ref="FreightItemID" />
                    <xsd:element minOccurs="0" ref="ShippingTrackingID" />
                </xsd:sequence>
                <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
            </xsd:sequence>
            <!--  xsd:attribute name="type" type="TokenType" use="required"/>-->
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID oagis:DocumentID 0 (1)
AlternateDocumentID oagis:AlternateDocumentID 0 unbounded
DocumentDateTime oagis:DocumentDateTime 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
StatusCode oagis:StatusCode 0 (1)
Status oagis:Status 0 unbounded
LineNumber oagis:LineNumber 0 (1)
ItemIDs oagis:ItemIDs 0 (1)
Facility oagis:Facility 0 unbounded
SerializedLot oagis:SerializedLot 0 unbounded
SalesOrderReference oagis:SalesOrderReference 0 unbounded
PurchaseOrderReference oagis:PurchaseOrderReference 0 unbounded
GroupName oagis:GroupName 0 unbounded
SequenceCode oagis:SequenceCode 0 (1)
StepID oagis:StepID 0 (1)
StepType oagis:StepType 0 (1)
IssuingParty oagis:IssuingParty 0 (1)
OperationReference oagis:OperationReference 0 unbounded
ReleaseNumber oagis:ReleaseNumber 0 (1)
ScheduleLineNumber oagis:ScheduleLineNumber 0 (1)
SubLineNumber oagis:SubLineNumber 0 (1)
ShipUnitReference oagis:ShipUnitReference 0 (1)
EffectiveTimePeriod oagis:EffectiveTimePeriod 0 (1)
Item oagis:Item 0 (1)
ID oagis:ID 0 (1)
SealID oagis:SealID 0 (1)
Type oagis:Type 0 (1)
FreightItemID oagis:FreightItemID 0 (1)
ShippingTrackingID oagis:ShippingTrackingID 0 (1)
<xs:group> oagis:DocumentIDsGroup 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:BillOfLadingReference, oagis:CatalogReference, oagis:DemandReference, oagis:DocumentReference, oagis:LastDeliveryReference
