Documentation for Standards for Technology in Automotive Retail
Definition Type: Group
Name: ItemInstanceGroup
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd

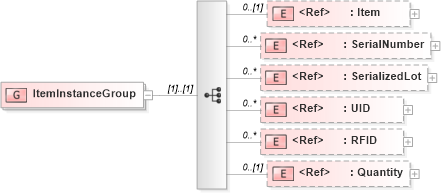

Collapse XSD Schema Diagram:
Drilldown into Quantity in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into UID in schema fields_xsd1 Drilldown into SerializedLot in schema components_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Item in schema components_xsd1XSD Diagram of ItemInstanceGroup in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:group name="ItemInstanceGroup">
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="Item" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="SerialNumber" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="SerializedLot" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="UID" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RFID" />
        <xsd:element minOccurs="0" ref="Quantity" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Item oagis:Item 0 (1)
SerialNumber oagis:SerialNumber 0 unbounded
SerializedLot oagis:SerializedLot 0 unbounded
UID oagis:UID 0 unbounded
RFID oagis:RFID 0 unbounded
Quantity oagis:Quantity 0 (1)
