Definition Type: ComplexType
Name: LaborOperationsDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: LaborOperations.xsd
Abstract
Documentation:
Contains the detailed information for each labor operation.

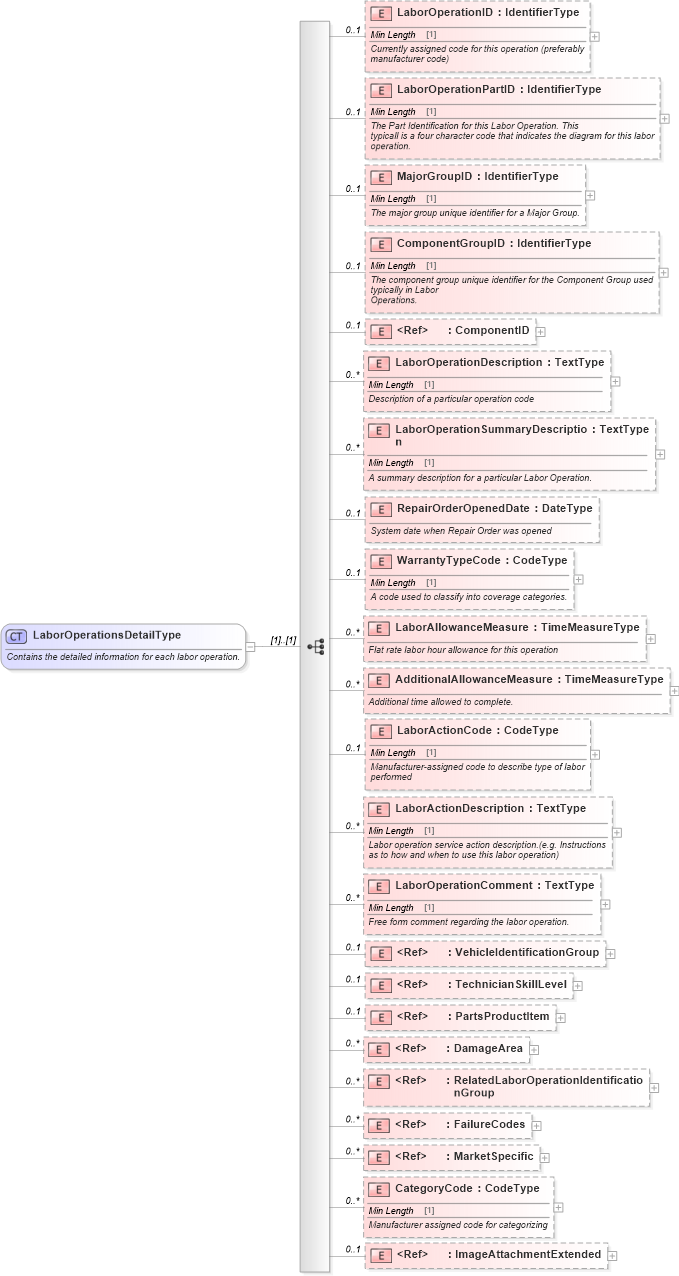

Collapse XSD Schema Diagram:
Drilldown into ImageAttachmentExtended in schema components_xsd Drilldown into CategoryCode in schema laboroperations_xsd Drilldown into MarketSpecific in schema components_xsd Drilldown into FailureCodes in schema components_xsd Drilldown into RelatedLaborOperationIdentificationGroup in schema components_xsd Drilldown into DamageArea in schema components_xsd Drilldown into PartsProductItem in schema components_xsd Drilldown into TechnicianSkillLevel in schema components_xsd Drilldown into VehicleIdentificationGroup in schema components_xsd Drilldown into LaborOperationComment in schema laboroperations_xsd Drilldown into LaborActionDescription in schema laboroperations_xsd Drilldown into LaborActionCode in schema laboroperations_xsd Drilldown into AdditionalAllowanceMeasure in schema laboroperations_xsd Drilldown into LaborAllowanceMeasure in schema laboroperations_xsd Drilldown into WarrantyTypeCode in schema laboroperations_xsd Drilldown into RepairOrderOpenedDate in schema laboroperations_xsd Drilldown into LaborOperationSummaryDescription in schema laboroperations_xsd Drilldown into LaborOperationDescription in schema laboroperations_xsd Drilldown into ComponentID in schema meta_xsd Drilldown into ComponentGroupID in schema laboroperations_xsd Drilldown into MajorGroupID in schema laboroperations_xsd Drilldown into LaborOperationPartID in schema laboroperations_xsd Drilldown into LaborOperationID in schema laboroperations_xsdXSD Diagram of LaborOperationsDetailType in schema laboroperations_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="LaborOperationsDetailType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org"> Contains the detailed information for each labor operation.
         </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="LaborOperationID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Currently assigned code for this operation (preferably
                  manufacturer code)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LaborOperationPartID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The Part Identification for this Labor Operation. This
                  typicall is a four character code that indicates the diagram for this labor operation.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MajorGroupID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.stanstandard.org/">The major group unique identifier for a Major Group.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ComponentGroupID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation>The component group unique identifier for the Component Group used typically in Labor
                  Operations.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ComponentID" minOccurs="0" maxOccurs="1" />
        <xsd:element name="LaborOperationDescription" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Description of a particular operation code
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LaborOperationSummaryDescription" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A summary description for a particular Labor Operation.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RepairOrderOpenedDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">System date when Repair Order was opened</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="WarrantyTypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A code used to classify into coverage categories.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LaborAllowanceMeasure" type="sqdt:TimeMeasureType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Flat rate labor hour allowance for this operation
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="AdditionalAllowanceMeasure" type="sqdt:TimeMeasureType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Additional time allowed to complete.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LaborActionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturer-assigned code to describe type of labor
                  performed</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LaborActionDescription" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Labor operation service action description.(e.g. Instructions
                  as to how and when to use this labor operation)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LaborOperationComment" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Free form comment regarding the labor operation.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="VehicleIdentificationGroup" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TechnicianSkillLevel" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PartsProductItem" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DamageArea" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RelatedLaborOperationIdentificationGroup" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FailureCodes" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MarketSpecific" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="CategoryCode" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturer assigned code for categorizing
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ImageAttachmentExtended" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LaborOperationID star:LaborOperationID 0 1
LaborOperationPartID star:LaborOperationPartID 0 1
MajorGroupID star:MajorGroupID 0 1
ComponentGroupID star:ComponentGroupID 0 1
ComponentID star:ComponentID 0 1
LaborOperationDescription star:LaborOperationDescription 0 unbounded
LaborOperationSummaryDescription star:LaborOperationSummaryDescription 0 unbounded
RepairOrderOpenedDate star:RepairOrderOpenedDate 0 1
WarrantyTypeCode star:WarrantyTypeCode 0 1
LaborAllowanceMeasure star:LaborAllowanceMeasure 0 unbounded
AdditionalAllowanceMeasure star:AdditionalAllowanceMeasure 0 unbounded
LaborActionCode star:LaborActionCode 0 1
LaborActionDescription star:LaborActionDescription 0 unbounded
LaborOperationComment star:LaborOperationComment 0 unbounded
VehicleIdentificationGroup star:VehicleIdentificationGroup 0 1
TechnicianSkillLevel star:TechnicianSkillLevel 0 1
PartsProductItem star:PartsProductItem 0 1
DamageArea star:DamageArea 0 unbounded
RelatedLaborOperationIdentificationGroup star:RelatedLaborOperationIdentificationGroup 0 unbounded
FailureCodes star:FailureCodes 0 unbounded
MarketSpecific star:MarketSpecific 0 unbounded
CategoryCode star:CategoryCode 0 unbounded
ImageAttachmentExtended star:ImageAttachmentExtended 0 1
Collapse Derivation Tree:
Collapse References:
star:LaborOperationsDetail
