<xsd:complexType name="LocatedLineType">
<xsd:annotation xmlns:star="http://www.starstandards.org/STAR" xmlns="http://www.starstandards.org/STAR">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Represents the parts for which pricing and availability was determined.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="LocatedLineUIDID" type="udt:IdentifierType">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">A unique identifier of
the record. This value should have no business meaning and serves the purpose as the
primary key in this component.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ParentLocatedLineUIDID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">For a child LocatedLine,
this value is equal to the LocatedLine.LocatedLineUID value of the parent
LocatedLine.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupplyingPartyUIDID" type="udt:IdentifierType">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">This field identifies the
supplying party for the located line and must be equal to one of the
SupplyingParties.Party.SupplyingPartyUID values.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupplyingPartyLocationUIDID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The
SupplyingPartyLocation.SupplyingPartyLocationUID of the supplying party's location.
The combination of SupplyingPartyUID and SupplyingPartyLocationUID must equal one of
the records in SupplyingPartyLocations. This field is only poplated when the
LocatedLine has no child lines.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="RequestedLineUIDID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Only populated for
LocatedLine components that do not have a parent LocatedLine, this field represents
the LineNumber of the RequestedLine for which the pricing/availability is for. Must
be equal to one of the RequestedLine.LineNumber values.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LineNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The number of the given
Line Component within the document. LineNumbers are assigned by the sending
system.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="PartsProductItem" />
<xsd:element name="ItemQuantity" type="sqdt:QuantityType">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of Part
number.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DealerNetPriceAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer net price of the individual part for the quantity indicated. This is the dealer net price to the dealer.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SuggestedRetailPriceAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Suggested retail price of the individual part for the quantity indicated. This is the price that the manufacturer suggests the dealer sells the part for.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AvailabilityStatusCode" type="scl:AvailabilityStatusEnumeratedType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the status of
the part at the supplying location.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ChildLineReasonCode" type="scl:ChildLineReasonCodeEnumeratedType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The reason this line has
child lines.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ChildLinePricingAppliesIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies if the pricing
of the child line(s) applies.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastSoldDate" type="udt:DateType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Last date this item was
sold.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastInventoryDate" type="udt:DateType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The last date inventory
was updated for this part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PriceDescription" type="udt:TextType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">A textual description of
price.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupplierItemID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Supplier identification
of part on order.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="LineStatus" minOccurs="0" />
<xsd:element name="AlternateItemID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">An alternate identifier
for an item or part in addition to the item number or part number. This may be a
unique identifier used for a independent after market(non dealer) sales
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupersedingPartNumberID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Part number superseding
this one.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OvernightIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">A flag which indicates if
the part is available for overnight shipping.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DealerToDealerTradePriceAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The price for a dealer
trade of a part. Dealer to Dealer Trade.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CorePriceAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The value of a used part
if returned to the OEM for refurbishing.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipDirectStandardServiceIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The
ShipDirectStandardServiceIndicator indicates the ability for a facility to offer
direct ship as a standard (and not exception) service.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartToBeReturnedIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not
the part should be returned or retained.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityAvailable" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The quantity the dealer
has available for release from inventory. It is traditionally defined as Quantity On
Hand minus reserved or encumbered parts.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOnHand" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The quantity of part
currently in inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="EstimatedFreightCostAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Is used to the describe
the estimated cost of transporting the items or products being sold, produced or
purchased. This amount is usually determined at the time the sales order is created
and is quoted to the customer, before the actual shipping method, weight or number
of units is known. This is also customarily known as a general Shipping and Handling
charge.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

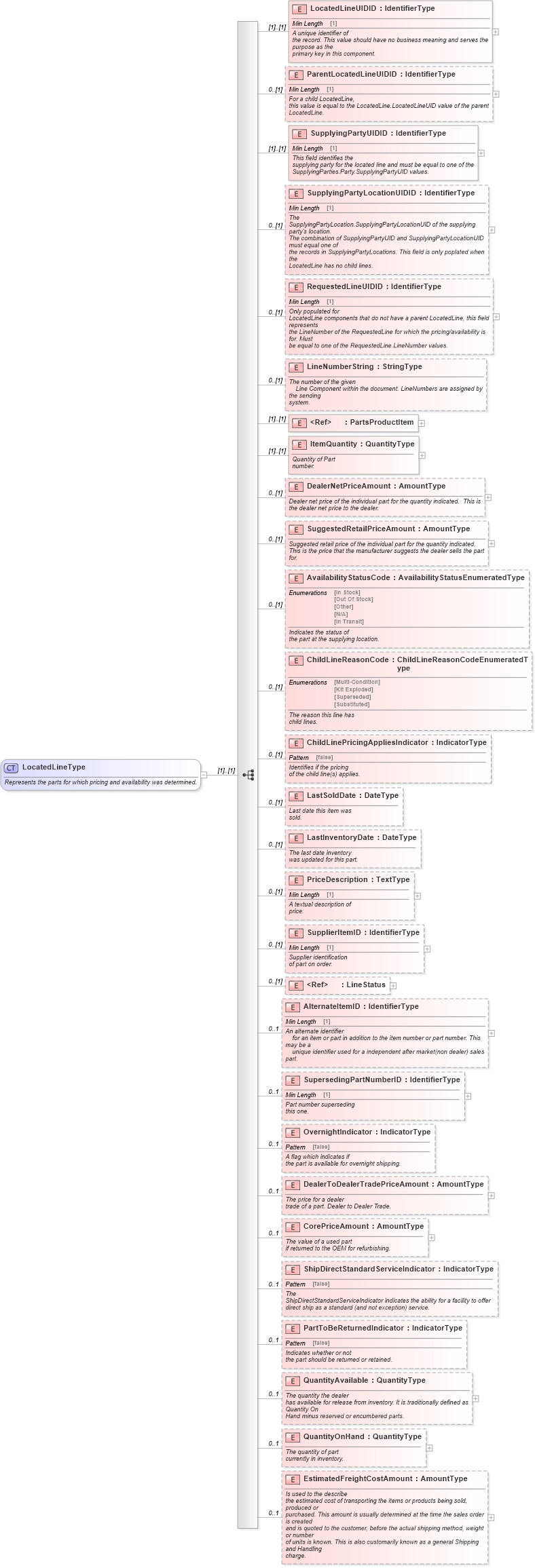

XSD Schema Diagram:
