Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: manifest
Namespace: http://www.starstandards.org/webservices/2005/10/transport
Type: starws:Manifest
Containing Schema: STARWSDLDataTypes.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The manifest provides an easy and fast way to identify the type of data in the message without parsing the whole message. This is useful for implementations that make routing decisions based on the contents of the message. And, it’s especially useful if the body of the message is encrypted.

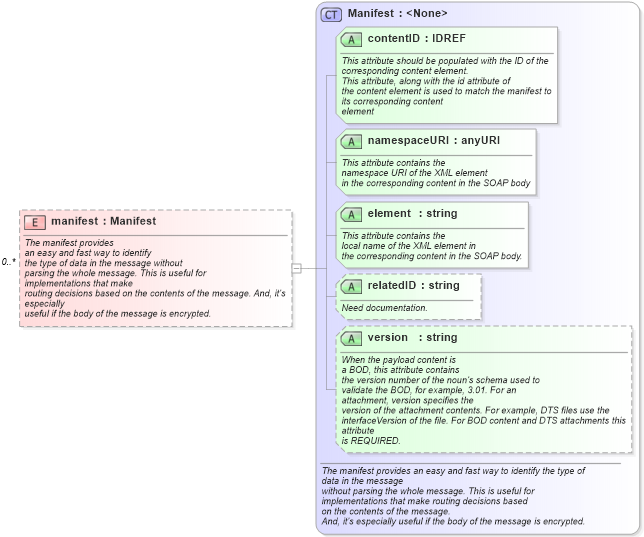

Collapse XSD Schema Diagram:
Drilldown into version in schema starwsdldatatypes_xsd Drilldown into relatedID in schema starwsdldatatypes_xsd Drilldown into element in schema starwsdldatatypes_xsd Drilldown into namespaceURI in schema starwsdldatatypes_xsd Drilldown into contentID in schema starwsdldatatypes_xsd Drilldown into Manifest in schema starwsdldatatypes_xsdXSD Diagram of manifest in schema starwsdldatatypes_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="manifest" type="Manifest" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org"> The manifest provides
                        an easy and fast way to identify
                        the type of data in the message without
                        parsing the whole message. This is useful for
                        implementations that make
                        routing decisions based on the contents of the message. And, it’s
                        especially
                        useful if the body of the message is encrypted. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
contentID starws:contentID Required
namespaceURI starws:namespaceURI Required
element starws:element Required
relatedID starws:relatedID Optional
version starws:version Optional
Collapse Derivation Tree:
