<xsd:complexType name="PartsInventoryLineType">
<xsd:annotation xmlns="http://www.starstandards.org/STAR">
<xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="ItemID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use ItemID from PartsProductItem</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOnHand" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The quantity of part
currently in inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantitySold" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of part sold
since last inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOfLostSale" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Potential quantity of
sales lost due to non-inventory since last inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartClassCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Gifts, literature, keys,
regular parts Inventory Class code (if any) used in DMS system.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOnOrder" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of all
outstanding orders not received into inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityReOrderPoint" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity that triggers
dealer's reordering of part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityTwelveMonthSales" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity sold over last
12 months (rolling).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BinLocation" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer specific location
of part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityTwelveMonthLostSales" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of lost sales
over last 12 months (rolling).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BackOrderQuantity" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of part on back
order</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityOfReturn" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of part returned
since last inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityReserved" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of part reserved
for service.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="UnitPriceAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">UnitPrice</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityDealerPartStocking" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer defined quantity
that is to be stocked above the manufacturer recommended stocking level of the
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="MonthsNoSaleNumeric" type="udt:NumericType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The number of months that
a part has gone without a recorded sale - calculated on a calendar month
basis.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityAvailable" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The quantity the dealer
has available for release from inventory. It is traditionally defined as Quantity On
Hand minus reserved or encumbered parts.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ReplenishmentCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Alphanumeric code that
signals manufacturer application if replenishment for the part is controlled by
manufacturer (value 2) or by DMS (value 3).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastSoldDate" type="udt:DateType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Last date this item was
sold.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityUserMin" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">User-defined minimum
stocking quantity for a part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityUserMax" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">User-defined maximum
stocking quantity for a part to be held in inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartSourceCode" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the source of
the part (e.g. M - Manufacturer)</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="StockingStatusCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Code indicating if this
is a normally stocked part for this dealer.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SystemSetupDate" type="udt:DateType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Date the part was first
added to the dealer's inventory file.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuantityBestStockingLevel" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The optimal quantity of a
part to keep on-hand based on dealer specified parameters.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AverageWeeklyUsageQuantity" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The average weekly usage
of a part as calculated by the dealer's DMS.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Status" type="MinimumAcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="PartsProductItem" minOccurs="0" maxOccurs="1" />
<xsd:element ref="PartsForecasting" minOccurs="0" maxOccurs="1" />
<xsd:element ref="DealerParty" minOccurs="0" maxOccurs="1" />
<xsd:element ref="FreeFormTextGroup" minOccurs="0" maxOccurs="1" />
</xsd:sequence>
</xsd:complexType>
|

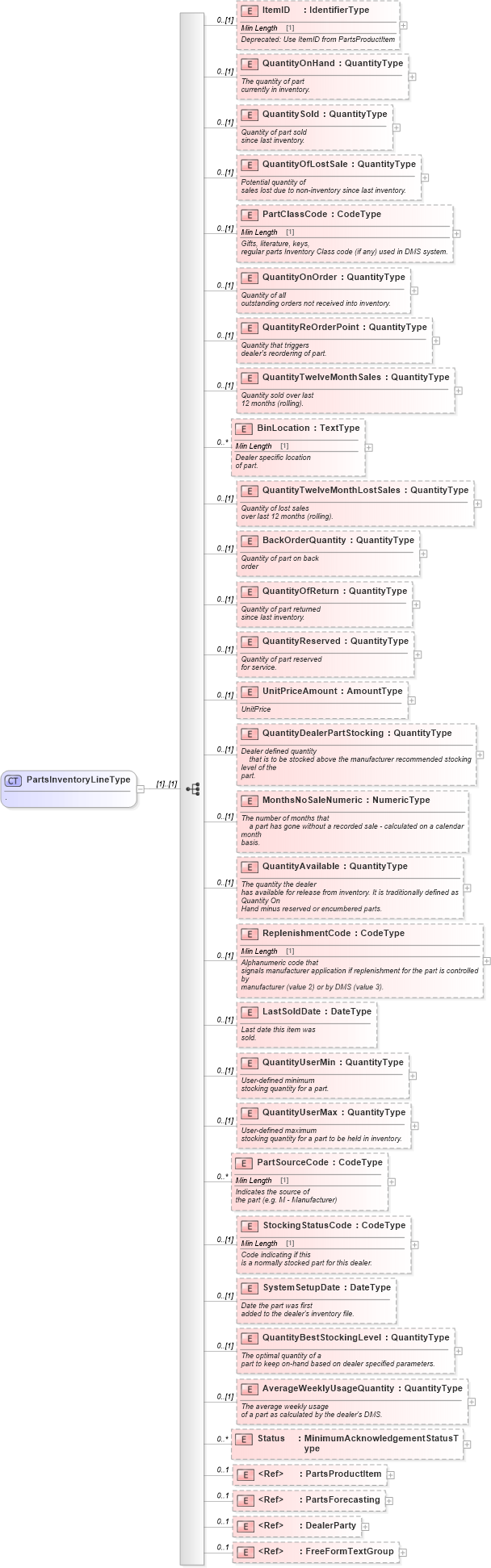

XSD Schema Diagram:
