<xsd:complexType name="PartsOrderHeaderType">
<xsd:complexContent>
<xsd:extension base="PartsOrderHeaderBaseType">
<xsd:sequence>
<xsd:element ref="AcknowledgmentDetail" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: AcknowledgmentStatus
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="PaymentTerms" minOccurs="0" />
<xsd:element name="OrderTypeCode" type="sqdt:OrderTypeCodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Part Order Type entered or selected at dealership.
Stock-STK, Vehicle Off Road-VOR, Daily-DPO, Emergency-EMG, Supplemental-SUP, Promotional-PRO,
Solicited-SOL, Vehicle Off Road Parts Inquiry-VPI, Weekly-WKL, Interim-INT, Export-EXP, Dropship
Stock-DSS, Dropship Vehicle Off Road-DVR, Lock and Key-LAK, Will Call-WCL, Return Request w/
Reference-RRR, Return Request w/o Reference-RWR, Credit Request w/ Reference-CRR, Credit Request
w/o Reference-CWR, Debit Request w/ Reference-DRR, Debit Request w/o Reference-DWR, Rush-RUS,
Urgent-URG, Other-OTH, N/A-N/A, Hold-HLD, Dating-DTG.</xsd:documentation>
<xsd:documentation source="http://www.starstandard.org/STAR/5/PartOrder">Part Order Type entered or selected at dealership.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SpecialInstructions" type="udt:TextType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text identifying unique handling of order.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OrderComments" type="udt:TextType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text of remarks regarding the order.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PromotionCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Code specifying a parts promotion.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PriorityString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5" />
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipPriorityCode" type="scl:ShipPriorityEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ShipmentCarrierTransportMethodTypeCode
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AlternateShipPriorityCode" type="scl:ShipPriorityEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ShipmentCarrierTransportMethodTypeCode
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowBackOrderIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates that partial shipments are permitted. This is
the default unless specified otherwise at the lineitem level. Navistar Use Case: True - This
line may be backordered False - The line is cancelled if entire quantity cannot be shipped. This
indicator applies only to this line. When the value is False, the line is cancelled unless it
can be completely filled. When the value is True, the quantity specified is shipped in its
entirety or the entire quantity is back-ordered unless Partial Shipping is Allowed. Default
value - value from header</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowCrossShipmentIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Permission indicator for multiple shipment sources.
Navistar Use Case: False - No sourcing True - Allow sourcing Default value - Use value from
header</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipWarehouseNumeric" type="udt:NumericType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: OriginatingWarehouse
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PrintIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FeedbackIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use:ShipTo</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="RepairOrderNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use:DocumentReferenceIdentificationGroup
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OrderReferenceNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use:DocumentReferenceIdentificationGroup
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ConsolidateIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates like order types should be consolidated to
one invoice/shipment.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SequenceCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">A pre-defined sort sequence for order consolidation,
i.e., sort by part order.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipmentCarrierCode" type="scl:ShipmentCarrierEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ShipmentCarrierCompanyCode
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AlternateShipmentCarrierCode" type="scl:ShipmentCarrierEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ShipmentCarrierCompanyCode
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TariffCodeIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicator of tariff.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TariffCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Code identifying the tariff associated with the
order/shipment.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="BillToParty" minOccurs="0" />
<xsd:element ref="ShipToParty" minOccurs="0" />
<xsd:element ref="SupplierParty" minOccurs="0" />
<xsd:element ref="AlternateShipToParty" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use:ShipTo</xsd:documentation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">2008 PO Profile Group found that there was no use case
for an AlternateShipTo</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OrderActionCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the action to be applied to the entire order
(e.g., Ship, Cancel, Upgrade, etc.)</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Status" type="AcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> Deprecated: Use AcknowledgmentStatus. Renamed field to
handle correct NDR rules. This is left in for compatibility reasons. It will be removed in the
next major version of STAR.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SubtotalAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Total amount of line items extended. This is the
economic value of the lineitem.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="EstimatedFreightCostAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Is used to the describe the estimated cost of
transporting the items or products being sold, produced or purchased. This amount is usually
determined at the time the sales order is created and is quoted to the customer, before the
actual shipping method, weight or number of units is known. This is also customarily known as a
general Shipping and Handling charge.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="HandlingAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The amount charged for the preparation of a shipment
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TotalAmountLessTax" type="udt:AmountType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Total dollar amount of the order including freight and
handling charge, but excluding taxes.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AlternateShipToIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if the order can be shipped to the alternate
address.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="OrderState" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="AllowBackOrderPartialShipCode" type="scl:AllowBackOrderPartialShipEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies if the dealer is willing to accept
backorders and partial shipments on the order.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="RequestedShipDate" type="udt:DateType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The date the dealer is requesting the supplier to ship
the order. This could be sooner or later that the typical stock order shipping date. However, it
is expected this field is intended to delay the shipment from the typical stock order processing
to some later preferred date.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ManufacturerOrderNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> Deprecated: Use DocumentIdentificationGroup.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DealerOrderNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> Deprecated: Use DocumentIdentificationGroup.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ChangeIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether a field or sub-component has changed.
This may be used on a Change BOD to indicate that a change has been made on a previously
submitted document. Used at the Header level, this would indicate a change specifically to the
Header.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CrossShipmentRestrictionCode" type="sqdt:CrossShipmentRestrictionCodeType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Used to restrict the shipping options on the OEM to the
Dealer when Cross Shipment is allowed.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartsOrderReceivedDateTime" type="udt:DateTimeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The date and time a parts order was received.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FOBTermsString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Transit Ownership terms</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="ShipmentCarrierDetail" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="OrderDatePeriod" minOccurs="0" maxOccurs="1" />
<xsd:element name="OrderedByName" type="udt:NameType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The name of the individual who created the order.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowSubstitutionIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if the dealer allows substituted part.
Navistar: Use the header resident version of this field to set a default for the entire order.
The line resident field has three states False, True, and omitted. If omitted, the default value
from the header is used. If the header field is omitted, the value is True for ALLOWED. False -
Not allowed True - Allowed</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowSupersessionIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if the dealer allows a superseded part.
Navistar Use Case: Use the header resident version of this field to set a default for the entire
order. The line resident field has three states False, True, and omitted. If omitted, the
default value from the header is used. If the header field is omitted, the value is True for
ALLOWED. False - Not allowed True - Allowed</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="AcknowledgementStatus" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="DocumentReferenceIdentificationGroup" minOccurs="0" maxOccurs="1" />
<xsd:element name="ProgramCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Code issued by item manufacturer that indicates the
rules and pricing used when selling direct to retailers instead of through OEMs.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DatasourceURICode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The a code that points to a datasource where the
datasource value is stored.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="FreeFormTextGroup" minOccurs="0" maxOccurs="1" />
<xsd:element name="BackOrderTypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Indicates the type of back order. Should only be set if back orders are allowed.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
|

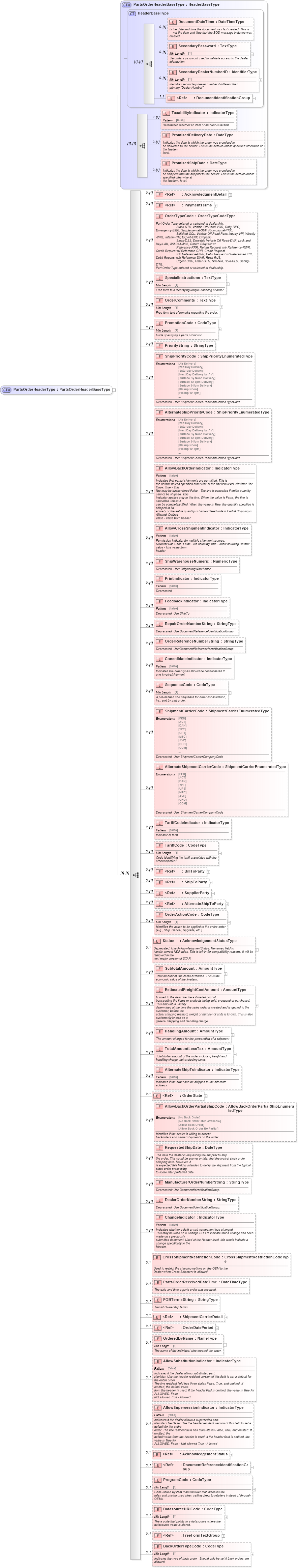

XSD Schema Diagram:
