<xsd:complexType name="PartsPriceListLineType">
<xsd:annotation xmlns="http://www.starstandards.org/STAR">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Parts Price List Line information. This may occur 1 to many times.
</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="LineID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">A unique identifer for a
line. i.e A line number.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Description" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5" />
</xsd:annotation>
</xsd:element>
<xsd:element ref="Attachment" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="PartsProductItem" minOccurs="1" maxOccurs="1" />
<xsd:element ref="PartCoreDetail" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="PackageQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the retailer to
know the quantity contained in the package.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="Dimension" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ItemWeightMeasure" type="sqdt:WeightMeasureType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The weight of an item or
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ClassificationTypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5"> A classification used
for an item. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="SupersedingPartGroup" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="Price" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="PriceBreak" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="ChangedPrice" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="NetDailyPriceAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The net daily price for
an item. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ProgramID" type="udt:IdentifierType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Program Id Eg.
Marketing</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FleetPriceCappedIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicator to control special competitive pricing for fleets. True is capped.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SelectFleetIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Indicate pricing restriction for Select Fleet customers. True means they can't be changed higher than National Fleet. False indicates Select Fleet customers will be charged a price no higher than the less competitive Major Fleet price.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="MinimumPriceBreakQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Contains number of units which must be purchased to achieve this level of pricing. Unit is determined by enumeration used for PriceBreak (Quantity, Amount, etc.)
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="NonDefaultCurrencyPriceGroup" minOccurs="0" maxOccurs="1" />
<xsd:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="DistributionMethodCode" type="sqdt:DistributionMethodCodeType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Indicates how an item may be sent to a buyer.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

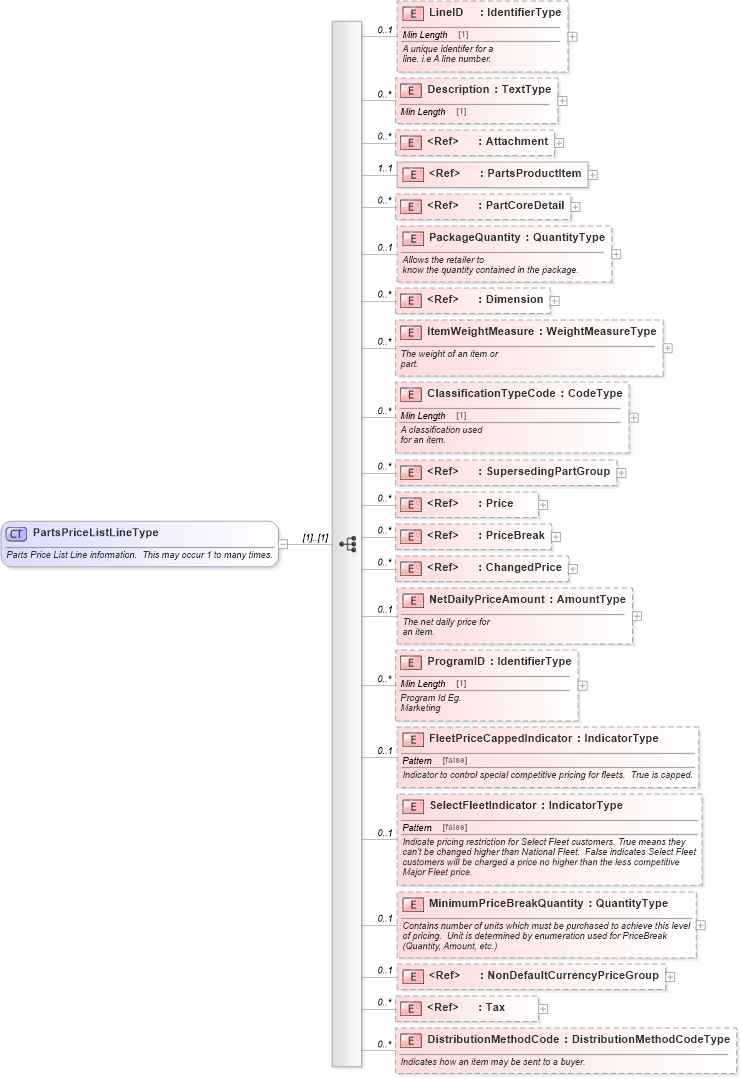

XSD Schema Diagram:
