Definition Type: ComplexType
Name: PartsReturnLineType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: PartsReturn.xsd
Abstract

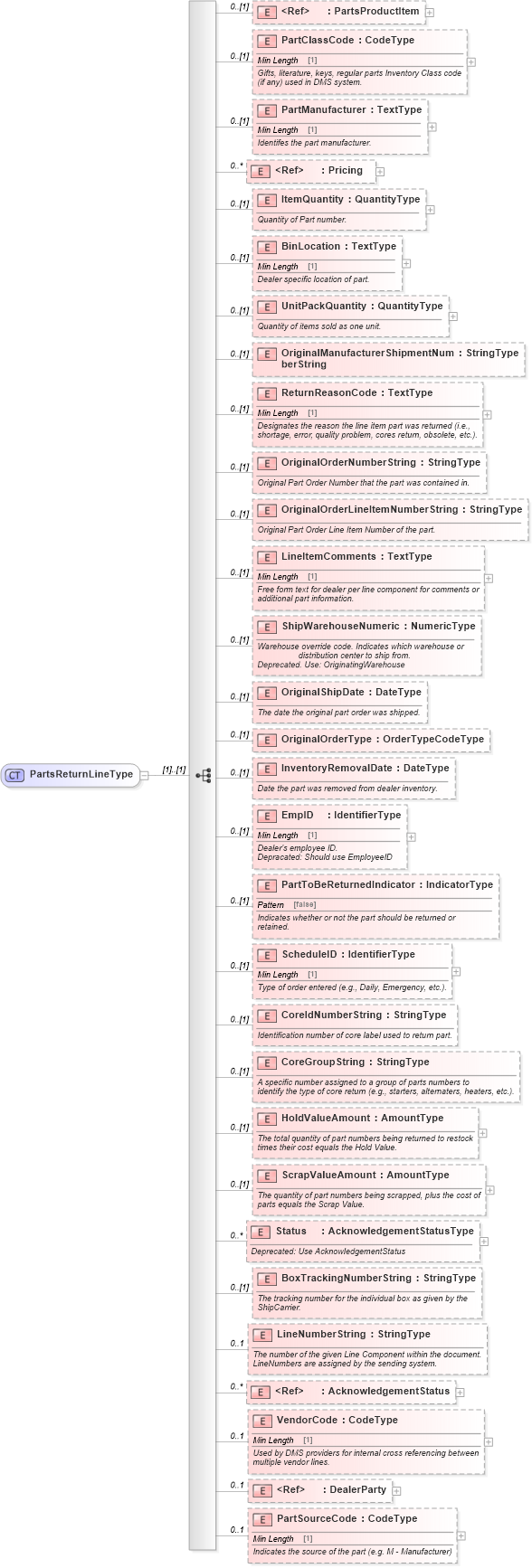

Collapse XSD Schema Diagram:
Drilldown into PartSourceCode in schema partsreturn_xsd Drilldown into DealerParty in schema components_xsd Drilldown into VendorCode in schema partsreturn_xsd Drilldown into AcknowledgementStatus in schema components_xsd Drilldown into LineNumberString in schema partsreturn_xsd Drilldown into BoxTrackingNumberString in schema partsreturn_xsd Drilldown into Status in schema partsreturn_xsd Drilldown into ScrapValueAmount in schema partsreturn_xsd Drilldown into HoldValueAmount in schema partsreturn_xsd Drilldown into CoreGroupString in schema partsreturn_xsd Drilldown into CoreIdNumberString in schema partsreturn_xsd Drilldown into ScheduleID in schema partsreturn_xsd Drilldown into PartToBeReturnedIndicator in schema partsreturn_xsd Drilldown into EmpID in schema partsreturn_xsd Drilldown into InventoryRemovalDate in schema partsreturn_xsd Drilldown into OriginalOrderType in schema partsreturn_xsd Drilldown into OriginalShipDate in schema partsreturn_xsd Drilldown into ShipWarehouseNumeric in schema partsreturn_xsd Drilldown into LineItemComments in schema partsreturn_xsd Drilldown into OriginalOrderLineItemNumberString in schema partsreturn_xsd Drilldown into OriginalOrderNumberString in schema partsreturn_xsd Drilldown into ReturnReasonCode in schema partsreturn_xsd Drilldown into OriginalManufacturerShipmentNumberString in schema partsreturn_xsd Drilldown into UnitPackQuantity in schema partsreturn_xsd Drilldown into BinLocation in schema partsreturn_xsd Drilldown into ItemQuantity in schema partsreturn_xsd Drilldown into Pricing in schema components_xsd Drilldown into PartManufacturer in schema partsreturn_xsd Drilldown into PartClassCode in schema partsreturn_xsd Drilldown into PartsProductItem in schema components_xsdXSD Diagram of PartsReturnLineType in schema partsreturn_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsReturnLineType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5" />
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="PartsProductItem" minOccurs="0" />
        <xsd:element name="PartClassCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Gifts, literature, keys, regular parts Inventory Class code
                  (if any) used in DMS system.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PartManufacturer" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifes the part manufacturer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Pricing" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ItemQuantity" type="sqdt:QuantityType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of Part number.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BinLocation" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer specific location of part.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="UnitPackQuantity" type="sqdt:QuantityType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of items sold as one unit.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OriginalManufacturerShipmentNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5" />
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ReturnReasonCode" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Designates the reason the line item part was returned (i.e.,
                  shortage, error, quality problem, cores return, obsolete, etc.).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OriginalOrderNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Original Part Order Number that the part was contained in.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OriginalOrderLineItemNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Original Part Order Line Item Number of the part.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LineItemComments" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text for dealer per line component for comments or
                  additional part information.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ShipWarehouseNumeric" type="udt:NumericType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Warehouse override code. Indicates which warehouse or
                  distribution center to ship from.</xsd:documentation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: OriginatingWarehouse</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OriginalShipDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the original part order was shipped.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OriginalOrderType" type="sqdt:OrderTypeCodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5" />
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="InventoryRemovalDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date the part was removed from dealer inventory.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="EmpID" type="udt:IdentifierType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer's employee ID.</xsd:documentation>
                <xsd:documentation>Depracated: Should use EmployeeID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PartToBeReturnedIndicator" type="udt:IndicatorType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not the part should be returned or
                  retained.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ScheduleID" type="udt:IdentifierType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Type of order entered (e.g., Daily, Emergency, etc.).
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CoreIdNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identification number of core label used to return part.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CoreGroupString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A specific number assigned to a group of parts numbers to
                  identify the type of core return (e.g., starters, alternaters, heaters, etc.).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="HoldValueAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The total quantity of part numbers being returned to restock
                  times their cost equals the Hold Value.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ScrapValueAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The quantity of part numbers being scrapped, plus the cost of
                  parts equals the Scrap Value.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Status" type="AcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> Deprecated: Use AcknowledgementStatus</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BoxTrackingNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The tracking number for the individual box as given by the
                  ShipCarrier.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LineNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The number of the given Line Component within the document.
                  LineNumbers are assigned by the sending system.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AcknowledgementStatus" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="VendorCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Used by DMS providers for internal cross referencing between
                  multiple vendor lines.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DealerParty" minOccurs="0" maxOccurs="1" />
        <xsd:element name="PartSourceCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the source of the part (e.g. M - Manufacturer)
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartsProductItem star:PartsProductItem 0 (1)
PartClassCode star:PartClassCode 0 (1)
PartManufacturer star:PartManufacturer 0 (1)
Pricing star:Pricing 0 unbounded
ItemQuantity star:ItemQuantity 0 (1)
BinLocation star:BinLocation 0 (1)
UnitPackQuantity star:UnitPackQuantity 0 (1)
OriginalManufacturerShipmentNumberString star:OriginalManufacturerShipmentNumberString 0 (1)
ReturnReasonCode star:ReturnReasonCode 0 (1)
OriginalOrderNumberString star:OriginalOrderNumberString 0 (1)
OriginalOrderLineItemNumberString star:OriginalOrderLineItemNumberString 0 (1)
LineItemComments star:LineItemComments 0 (1)
ShipWarehouseNumeric star:ShipWarehouseNumeric 0 (1)
OriginalShipDate star:OriginalShipDate 0 (1)
OriginalOrderType star:OriginalOrderType 0 (1)
InventoryRemovalDate star:InventoryRemovalDate 0 (1)
EmpID star:EmpID 0 (1)
PartToBeReturnedIndicator star:PartToBeReturnedIndicator 0 (1)
ScheduleID star:ScheduleID 0 (1)
CoreIdNumberString star:CoreIdNumberString 0 (1)
CoreGroupString star:CoreGroupString 0 (1)
HoldValueAmount star:HoldValueAmount 0 (1)
ScrapValueAmount star:ScrapValueAmount 0 (1)
Status star:Status 0 unbounded
BoxTrackingNumberString star:BoxTrackingNumberString 0 (1)
LineNumberString star:LineNumberString 0 1
AcknowledgementStatus star:AcknowledgementStatus 0 unbounded
VendorCode star:VendorCode 0 1
DealerParty star:DealerParty 0 1
PartSourceCode star:PartSourceCode 0 1
Collapse Derivation Tree:
Collapse References:
star:PartsReturnLine
