Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: PartsShipmentLine
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsShipmentLineType
Containing Schema: PartsShipment.xsd
Abstract
Documentation:
Parts Shipment Line

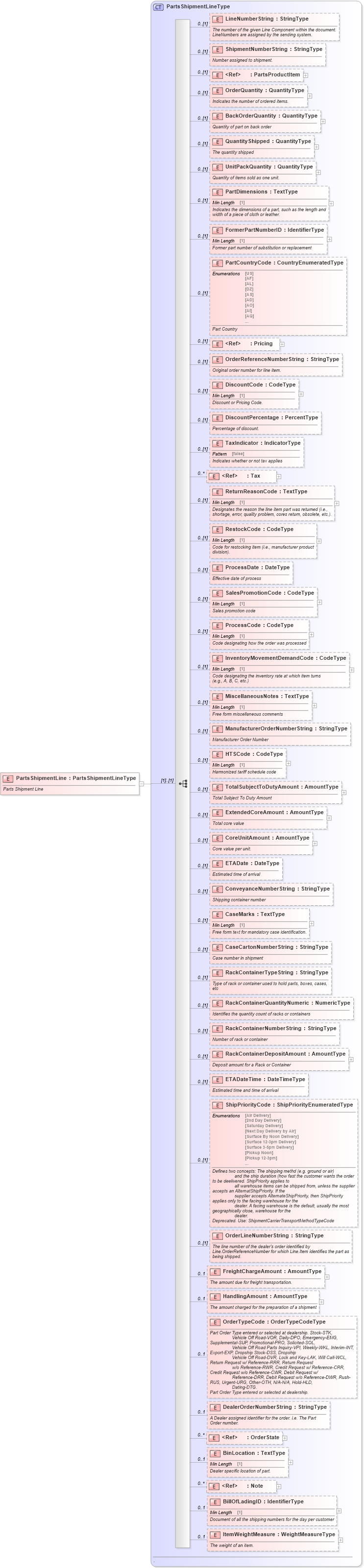

Collapse XSD Schema Diagram:
Drilldown into ItemWeightMeasure in schema partsshipment_xsd Drilldown into BillOfLadingID in schema partsshipment_xsd Drilldown into Note in schema fields_xsd1 Drilldown into BinLocation in schema partsshipment_xsd Drilldown into OrderState in schema components_xsd Drilldown into DealerOrderNumberString in schema partsshipment_xsd Drilldown into OrderTypeCode in schema partsshipment_xsd Drilldown into HandlingAmount in schema partsshipment_xsd Drilldown into FreightChargeAmount in schema partsshipment_xsd Drilldown into OrderLineNumberString in schema partsshipment_xsd Drilldown into ShipPriorityCode in schema partsshipment_xsd Drilldown into ETADateTime in schema partsshipment_xsd Drilldown into RackContainerDepositAmount in schema partsshipment_xsd Drilldown into RackContainerNumberString in schema partsshipment_xsd Drilldown into RackContainerQuantityNumeric in schema partsshipment_xsd Drilldown into RackContainerTypeString in schema partsshipment_xsd Drilldown into CaseCartonNumberString in schema partsshipment_xsd Drilldown into CaseMarks in schema partsshipment_xsd Drilldown into ConveyanceNumberString in schema partsshipment_xsd Drilldown into ETADate in schema partsshipment_xsd Drilldown into CoreUnitAmount in schema partsshipment_xsd Drilldown into ExtendedCoreAmount in schema partsshipment_xsd Drilldown into TotalSubjectToDutyAmount in schema partsshipment_xsd Drilldown into HTSCode in schema partsshipment_xsd Drilldown into ManufacturerOrderNumberString in schema partsshipment_xsd Drilldown into MiscellaneousNotes in schema partsshipment_xsd Drilldown into InventoryMovementDemandCode in schema partsshipment_xsd Drilldown into ProcessCode in schema partsshipment_xsd Drilldown into SalesPromotionCode in schema partsshipment_xsd Drilldown into ProcessDate in schema partsshipment_xsd Drilldown into RestockCode in schema partsshipment_xsd Drilldown into ReturnReasonCode in schema partsshipment_xsd Drilldown into Tax in schema components_xsd Drilldown into TaxIndicator in schema partsshipment_xsd Drilldown into DiscountPercentage in schema partsshipment_xsd Drilldown into DiscountCode in schema partsshipment_xsd Drilldown into OrderReferenceNumberString in schema partsshipment_xsd Drilldown into Pricing in schema components_xsd Drilldown into PartCountryCode in schema partsshipment_xsd Drilldown into FormerPartNumberID in schema partsshipment_xsd Drilldown into PartDimensions in schema partsshipment_xsd Drilldown into UnitPackQuantity in schema partsshipment_xsd Drilldown into QuantityShipped in schema partsshipment_xsd Drilldown into BackOrderQuantity in schema partsshipment_xsd Drilldown into OrderQuantity in schema partsshipment_xsd Drilldown into PartsProductItem in schema components_xsd Drilldown into ShipmentNumberString in schema partsshipment_xsd Drilldown into LineNumberString in schema partsshipment_xsd Drilldown into PartsShipmentLineType in schema partsshipment_xsdXSD Diagram of PartsShipmentLine in schema partsshipment_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsShipmentLine" type="PartsShipmentLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Parts Shipment Line</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumberString star:LineNumberString 0 (1)
ShipmentNumberString star:ShipmentNumberString 0 (1)
PartsProductItem star:PartsProductItem 0 (1)
OrderQuantity star:OrderQuantity 0 (1)
BackOrderQuantity star:BackOrderQuantity 0 (1)
QuantityShipped star:QuantityShipped 0 (1)
UnitPackQuantity star:UnitPackQuantity 0 (1)
PartDimensions star:PartDimensions 0 (1)
FormerPartNumberID star:FormerPartNumberID 0 (1)
PartCountryCode star:PartCountryCode 0 (1)
Pricing star:Pricing 0 (1)
OrderReferenceNumberString star:OrderReferenceNumberString 0 (1)
DiscountCode star:DiscountCode 0 (1)
DiscountPercentage star:DiscountPercentage 0 (1)
TaxIndicator star:TaxIndicator 0 (1)
Tax star:Tax 0 unbounded
ReturnReasonCode star:ReturnReasonCode 0 (1)
RestockCode star:RestockCode 0 (1)
ProcessDate star:ProcessDate 0 (1)
SalesPromotionCode star:SalesPromotionCode 0 (1)
ProcessCode star:ProcessCode 0 (1)
InventoryMovementDemandCode star:InventoryMovementDemandCode 0 (1)
MiscellaneousNotes star:MiscellaneousNotes 0 (1)
ManufacturerOrderNumberString star:ManufacturerOrderNumberString 0 (1)
HTSCode star:HTSCode 0 (1)
TotalSubjectToDutyAmount star:TotalSubjectToDutyAmount 0 (1)
ExtendedCoreAmount star:ExtendedCoreAmount 0 (1)
CoreUnitAmount star:CoreUnitAmount 0 (1)
ETADate star:ETADate 0 (1)
ConveyanceNumberString star:ConveyanceNumberString 0 (1)
CaseMarks star:CaseMarks 0 (1)
CaseCartonNumberString star:CaseCartonNumberString 0 (1)
RackContainerTypeString star:RackContainerTypeString 0 (1)
RackContainerQuantityNumeric star:RackContainerQuantityNumeric 0 (1)
RackContainerNumberString star:RackContainerNumberString 0 (1)
RackContainerDepositAmount star:RackContainerDepositAmount 0 (1)
ETADateTime star:ETADateTime 0 (1)
ShipPriorityCode star:ShipPriorityCode 0 (1)
OrderLineNumberString star:OrderLineNumberString 0 (1)
FreightChargeAmount star:FreightChargeAmount 0 1
HandlingAmount star:HandlingAmount 0 1
OrderTypeCode star:OrderTypeCode 0 1
DealerOrderNumberString star:DealerOrderNumberString 0 1
OrderState star:OrderState 0 unbounded
BinLocation star:BinLocation 0 1
Note oagis:Note 0 unbounded
BillOfLadingID star:BillOfLadingID 0 1
ItemWeightMeasure star:ItemWeightMeasure 0 1
Collapse Derivation Tree:
