Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: PersonType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:PersonABIEType
Containing Schema: Components.xsd
Abstract

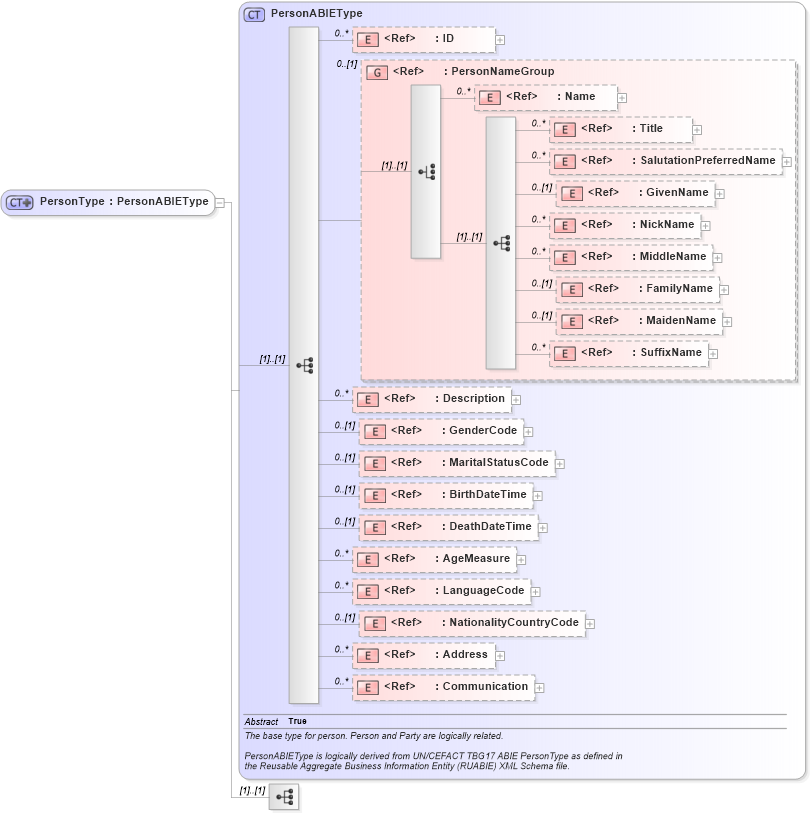

Collapse XSD Schema Diagram:
Drilldown into Communication in schema components_xsd1 Drilldown into Address in schema components_xsd1 Drilldown into NationalityCountryCode in schema fields_xsd1 Drilldown into LanguageCode in schema fields_xsd1 Drilldown into AgeMeasure in schema fields_xsd1 Drilldown into DeathDateTime in schema fields_xsd1 Drilldown into BirthDateTime in schema fields_xsd1 Drilldown into MaritalStatusCode in schema fields_xsd1 Drilldown into GenderCode in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into SuffixName in schema fields_xsd1 Drilldown into MaidenName in schema fields_xsd1 Drilldown into FamilyName in schema fields_xsd1 Drilldown into MiddleName in schema fields_xsd1 Drilldown into NickName in schema fields_xsd1 Drilldown into GivenName in schema fields_xsd1 Drilldown into SalutationPreferredName in schema components_xsd1 Drilldown into Title in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into PersonNameGroup in schema components_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into PersonABIEType in schema components_xsd1XSD Diagram of PersonType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PersonType">
    <xsd:complexContent>
        <xsd:extension base="PersonABIEType">
            <xsd:sequence>
                <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
Name oagis:Name 0 unbounded
Title oagis:Title 0 unbounded
SalutationPreferredName oagis:SalutationPreferredName 0 unbounded
GivenName oagis:GivenName 0 (1)
NickName oagis:NickName 0 unbounded
MiddleName oagis:MiddleName 0 unbounded
FamilyName oagis:FamilyName 0 (1)
MaidenName oagis:MaidenName 0 (1)
SuffixName oagis:SuffixName 0 unbounded
Description oagis:Description 0 unbounded
GenderCode oagis:GenderCode 0 (1)
MaritalStatusCode oagis:MaritalStatusCode 0 (1)
BirthDateTime oagis:BirthDateTime 0 (1)
DeathDateTime oagis:DeathDateTime 0 (1)
AgeMeasure oagis:AgeMeasure 0 unbounded
LanguageCode oagis:LanguageCode 0 unbounded
NationalityCountryCode oagis:NationalityCountryCode 0 (1)
Address oagis:Address 0 unbounded
Communication oagis:Communication 0 unbounded
<xs:group> oagis:PersonNameGroup 0 (1)
Collapse Derivation Tree:
