Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: PreferenceDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

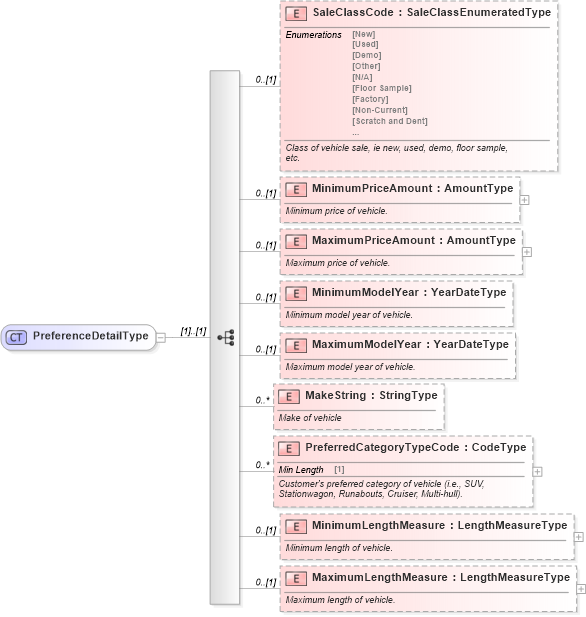

Collapse XSD Schema Diagram:
Drilldown into MaximumLengthMeasure in schema components_xsd Drilldown into MinimumLengthMeasure in schema components_xsd Drilldown into PreferredCategoryTypeCode in schema components_xsd Drilldown into MakeString in schema components_xsd Drilldown into MaximumModelYear in schema components_xsd Drilldown into MinimumModelYear in schema components_xsd Drilldown into MaximumPriceAmount in schema components_xsd Drilldown into MinimumPriceAmount in schema components_xsd Drilldown into SaleClassCode in schema components_xsdXSD Diagram of PreferenceDetailType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PreferenceDetailType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="SaleClassCode" type="scl:SaleClassEnumeratedType">
            <xsd:annotation>
                <xsd:documentation> Class of vehicle sale, ie new, used, demo, floor sample,
                        etc. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MinimumPriceAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation> Minimum price of vehicle. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MaximumPriceAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation> Maximum price of vehicle. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MinimumModelYear" type="qdt:YearDateType">
            <xsd:annotation>
                <xsd:documentation> Minimum model year of vehicle. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MaximumModelYear" type="qdt:YearDateType">
            <xsd:annotation>
                <xsd:documentation> Maximum model year of vehicle. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="MakeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation> Make of vehicle </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="PreferredCategoryTypeCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Customer's preferred category of vehicle (i.e., SUV,
                            Stationwagon, Runabouts, Cruiser, Multi-hull).
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MinimumLengthMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation>
                        Minimum length of vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MaximumLengthMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation>
                        Maximum length of vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SaleClassCode star:SaleClassCode 0 (1)
MinimumPriceAmount star:MinimumPriceAmount 0 (1)
MaximumPriceAmount star:MaximumPriceAmount 0 (1)
MinimumModelYear star:MinimumModelYear 0 (1)
MaximumModelYear star:MaximumModelYear 0 (1)
MakeString star:MakeString 0 unbounded
PreferredCategoryTypeCode star:PreferredCategoryTypeCode 0 unbounded
MinimumLengthMeasure star:MinimumLengthMeasure 0 (1)
MaximumLengthMeasure star:MaximumLengthMeasure 0 (1)
Collapse Derivation Tree:
Collapse References:
star:PreferenceDetail
