Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ProductItemType
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Containing Schema: ReusableAggregateCoreComponent.xsd
Abstract

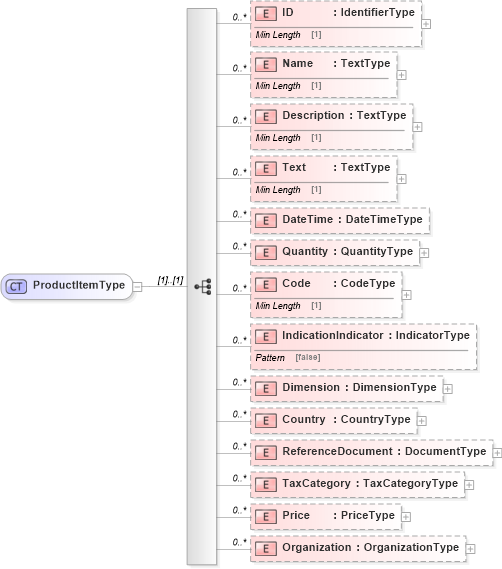

Collapse XSD Schema Diagram:
Drilldown into Organization in schema reusableaggregatecorecomponent_xsd Drilldown into Price in schema reusableaggregatecorecomponent_xsd Drilldown into TaxCategory in schema reusableaggregatecorecomponent_xsd Drilldown into ReferenceDocument in schema reusableaggregatecorecomponent_xsd Drilldown into Country in schema reusableaggregatecorecomponent_xsd Drilldown into Dimension in schema reusableaggregatecorecomponent_xsd Drilldown into IndicationIndicator in schema reusableaggregatecorecomponent_xsd Drilldown into Code in schema reusableaggregatecorecomponent_xsd Drilldown into Quantity in schema reusableaggregatecorecomponent_xsd Drilldown into DateTime in schema reusableaggregatecorecomponent_xsd Drilldown into Text in schema reusableaggregatecorecomponent_xsd Drilldown into Description in schema reusableaggregatecorecomponent_xsd Drilldown into Name in schema reusableaggregatecorecomponent_xsd Drilldown into ID in schema reusableaggregatecorecomponent_xsdXSD Diagram of ProductItemType in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ProductItemType">
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Name" type="udt:TextType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Description" type="udt:TextType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Text" type="udt:TextType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="DateTime" type="udt:DateTimeType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Quantity" type="udt:QuantityType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Code" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="IndicationIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Dimension" type="rcm:DimensionType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Country" type="rcm:CountryType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ReferenceDocument" type="rcm:DocumentType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="TaxCategory" type="rcm:TaxCategoryType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Price" type="rcm:PriceType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Organization" type="rcm:OrganizationType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID rcm:ID 0 unbounded
Name rcm:Name 0 unbounded
Description rcm:Description 0 unbounded
Text rcm:Text 0 unbounded
DateTime rcm:DateTime 0 unbounded
Quantity rcm:Quantity 0 unbounded
Code rcm:Code 0 unbounded
IndicationIndicator rcm:IndicationIndicator 0 unbounded
Dimension rcm:Dimension 0 unbounded
Country rcm:Country 0 unbounded
ReferenceDocument rcm:ReferenceDocument 0 unbounded
TaxCategory rcm:TaxCategory 0 unbounded
Price rcm:Price 0 unbounded
Organization rcm:Organization 0 unbounded
