Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: RetailDeliveryReportingHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:RetailDeliveryReportingHeaderType
Containing Schema: RetailDeliveryReporting.xsd
Abstract
Documentation:
Retail Delivery Reporting Header

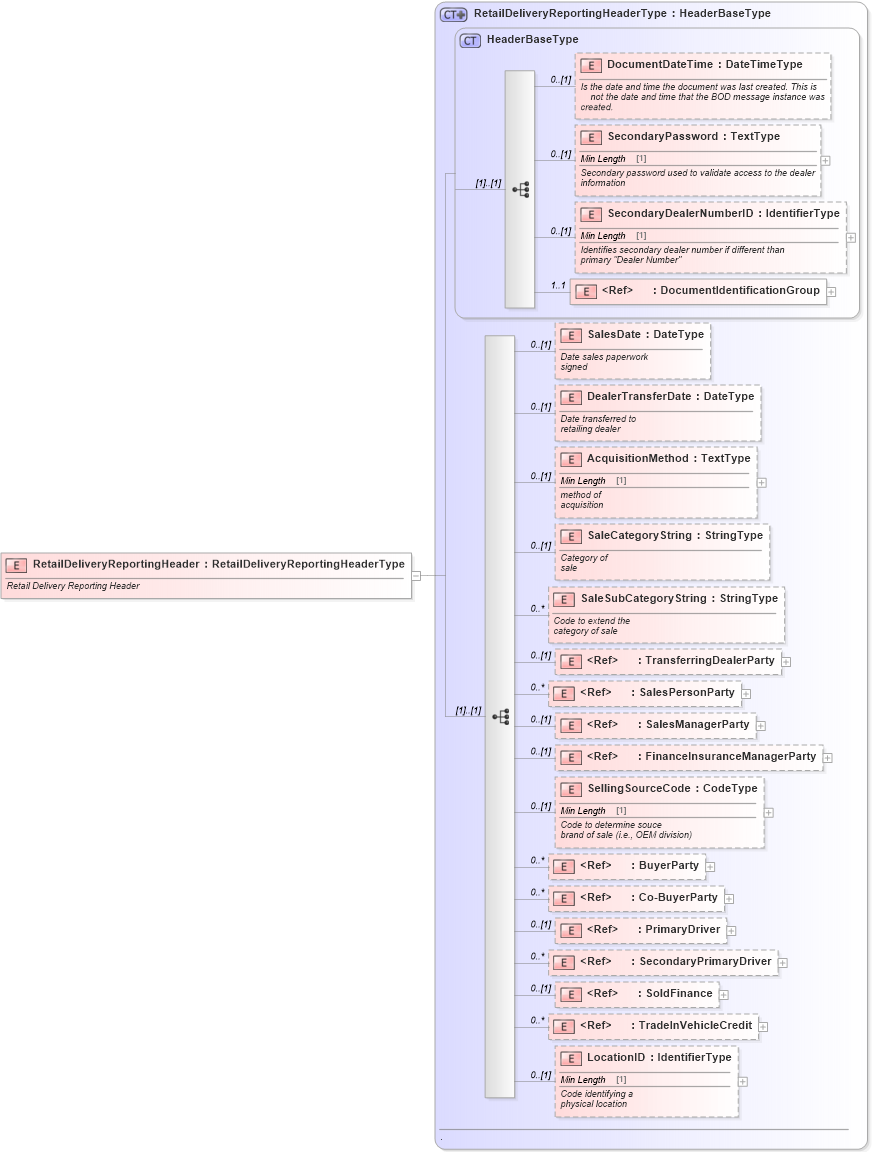

Collapse XSD Schema Diagram:
Drilldown into LocationID in schema retaildeliveryreporting_xsd Drilldown into TradeInVehicleCredit in schema components_xsd Drilldown into SoldFinance in schema retaildeliveryreporting_xsd Drilldown into SecondaryPrimaryDriver in schema components_xsd Drilldown into PrimaryDriver in schema components_xsd Drilldown into Co-BuyerParty in schema components_xsd Drilldown into BuyerParty in schema components_xsd Drilldown into SellingSourceCode in schema retaildeliveryreporting_xsd Drilldown into FinanceInsuranceManagerParty in schema components_xsd Drilldown into SalesManagerParty in schema components_xsd Drilldown into SalesPersonParty in schema components_xsd Drilldown into TransferringDealerParty in schema components_xsd Drilldown into SaleSubCategoryString in schema retaildeliveryreporting_xsd Drilldown into SaleCategoryString in schema retaildeliveryreporting_xsd Drilldown into AcquisitionMethod in schema retaildeliveryreporting_xsd Drilldown into DealerTransferDate in schema retaildeliveryreporting_xsd Drilldown into SalesDate in schema retaildeliveryreporting_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into RetailDeliveryReportingHeaderType in schema retaildeliveryreporting_xsdXSD Diagram of RetailDeliveryReportingHeader in schema retaildeliveryreporting_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="RetailDeliveryReportingHeader" type="RetailDeliveryReportingHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Retail Delivery Reporting Header
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
SalesDate star:SalesDate 0 (1)
DealerTransferDate star:DealerTransferDate 0 (1)
AcquisitionMethod star:AcquisitionMethod 0 (1)
SaleCategoryString star:SaleCategoryString 0 (1)
SaleSubCategoryString star:SaleSubCategoryString 0 unbounded
TransferringDealerParty star:TransferringDealerParty 0 (1)
SalesPersonParty star:SalesPersonParty 0 unbounded
SalesManagerParty star:SalesManagerParty 0 (1)
FinanceInsuranceManagerParty star:FinanceInsuranceManagerParty 0 (1)
SellingSourceCode star:SellingSourceCode 0 (1)
BuyerParty star:BuyerParty 0 unbounded
Co-BuyerParty star:Co-BuyerParty 0 unbounded
PrimaryDriver star:PrimaryDriver 0 (1)
SecondaryPrimaryDriver star:SecondaryPrimaryDriver 0 unbounded
SoldFinance star:SoldFinance 0 (1)
TradeInVehicleCredit star:TradeInVehicleCredit 0 unbounded
LocationID star:LocationID 0 (1)
Collapse Derivation Tree:
