Definition Type: ComplexType
Name: RetailDeliveryReportingHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: RetailDeliveryReporting.xsd
Abstract
Documentation:
.

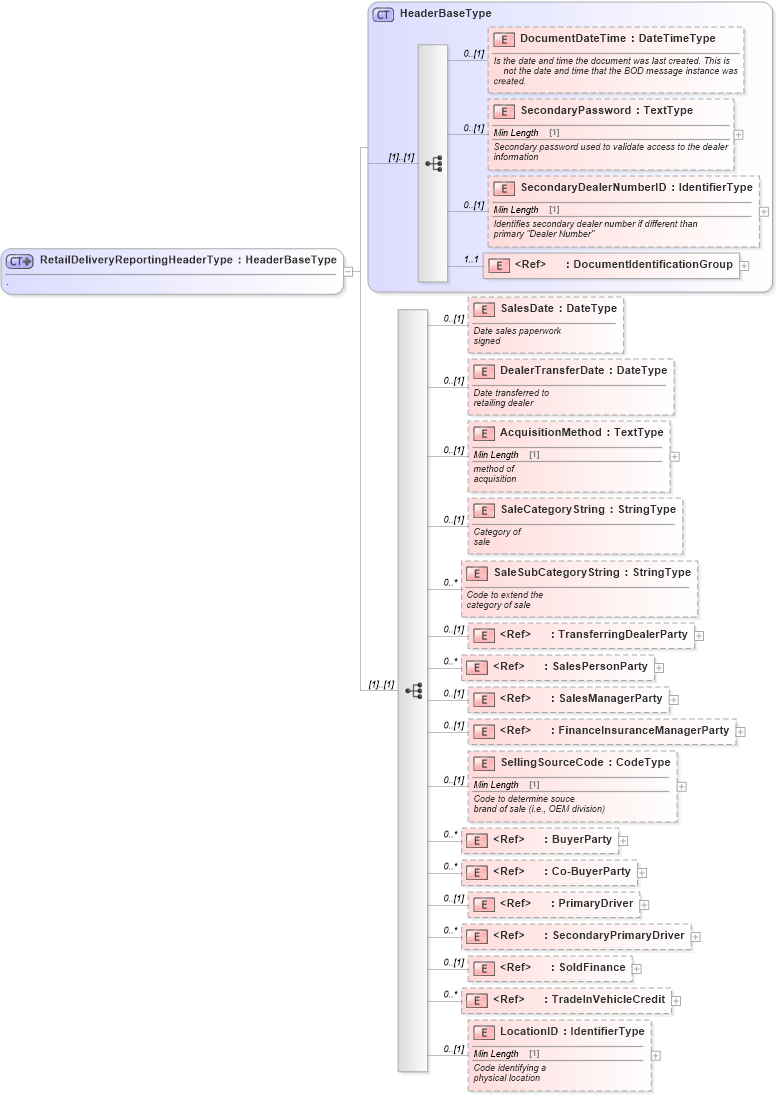

Collapse XSD Schema Diagram:
Drilldown into LocationID in schema retaildeliveryreporting_xsd Drilldown into TradeInVehicleCredit in schema components_xsd Drilldown into SoldFinance in schema retaildeliveryreporting_xsd Drilldown into SecondaryPrimaryDriver in schema components_xsd Drilldown into PrimaryDriver in schema components_xsd Drilldown into Co-BuyerParty in schema components_xsd Drilldown into BuyerParty in schema components_xsd Drilldown into SellingSourceCode in schema retaildeliveryreporting_xsd Drilldown into FinanceInsuranceManagerParty in schema components_xsd Drilldown into SalesManagerParty in schema components_xsd Drilldown into SalesPersonParty in schema components_xsd Drilldown into TransferringDealerParty in schema components_xsd Drilldown into SaleSubCategoryString in schema retaildeliveryreporting_xsd Drilldown into SaleCategoryString in schema retaildeliveryreporting_xsd Drilldown into AcquisitionMethod in schema retaildeliveryreporting_xsd Drilldown into DealerTransferDate in schema retaildeliveryreporting_xsd Drilldown into SalesDate in schema retaildeliveryreporting_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of RetailDeliveryReportingHeaderType in schema retaildeliveryreporting_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="RetailDeliveryReportingHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--<xsd:element ref="DocumentID" minOccurs="0" />-->
                <xsd:element name="SalesDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Date sales paperwork
                signed</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DealerTransferDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Date transferred to
                retailing dealer</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="AcquisitionMethod" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">method of
            acquisition</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SaleCategoryString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Category of
            sale</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SaleSubCategoryString" type="qdt:StringType" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Code to extend the
                category of sale</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="TransferringDealerParty" minOccurs="0" />
                <xsd:element ref="SalesPersonParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SalesManagerParty" minOccurs="0" />
                <xsd:element ref="FinanceInsuranceManagerParty" minOccurs="0" />
                <xsd:element name="SellingSourceCode" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Code to determine souce
                brand of sale (i.e., OEM division)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="BuyerParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Co-BuyerParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="PrimaryDriver" minOccurs="0" />
                <xsd:element ref="SecondaryPrimaryDriver" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SoldFinance" minOccurs="0" />
                <xsd:element ref="TradeInVehicleCredit" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="LocationID" type="udt:IdentifierType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Code identifying a
                physical location</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
SalesDate star:SalesDate 0 (1)
DealerTransferDate star:DealerTransferDate 0 (1)
AcquisitionMethod star:AcquisitionMethod 0 (1)
SaleCategoryString star:SaleCategoryString 0 (1)
SaleSubCategoryString star:SaleSubCategoryString 0 unbounded
TransferringDealerParty star:TransferringDealerParty 0 (1)
SalesPersonParty star:SalesPersonParty 0 unbounded
SalesManagerParty star:SalesManagerParty 0 (1)
FinanceInsuranceManagerParty star:FinanceInsuranceManagerParty 0 (1)
SellingSourceCode star:SellingSourceCode 0 (1)
BuyerParty star:BuyerParty 0 unbounded
Co-BuyerParty star:Co-BuyerParty 0 unbounded
PrimaryDriver star:PrimaryDriver 0 (1)
SecondaryPrimaryDriver star:SecondaryPrimaryDriver 0 unbounded
SoldFinance star:SoldFinance 0 (1)
TradeInVehicleCredit star:TradeInVehicleCredit 0 unbounded
LocationID star:LocationID 0 (1)
Collapse Derivation Tree:
Collapse References:
star:RetailDeliveryReportingHeader
