Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: RetailDeliveryReportingType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: RetailDeliveryReporting.xsd
Abstract
Documentation:
STAR Version 3.0 - Draft STAR Version 2.1, STAR approved 04/20/2005; effective date 07/04/2005 STAR Version 2.0, STAR approved 05/07/2004; effective date 07/04/2004 STAR Version 1.1 STAR approved 04/09/2003; OAGI approved 3/15/2003 effective date 07/04/2003 STAR Version 1.0 STAR approved 11/22/2002; OAGI reviewed 11/08/2002; effective date 01/01/2003

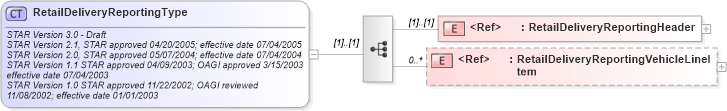

Collapse XSD Schema Diagram:
Drilldown into RetailDeliveryReportingVehicleLineItem in schema retaildeliveryreporting_xsd Drilldown into RetailDeliveryReportingHeader in schema retaildeliveryreporting_xsdXSD Diagram of RetailDeliveryReportingType in schema retaildeliveryreporting_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="RetailDeliveryReportingType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 3.0 - Draft</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 2.1, STAR approved 04/20/2005; effective date 07/04/2005</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 2.0, STAR approved 05/07/2004; effective date 07/04/2004</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 1.1 STAR approved 04/09/2003; OAGI approved 3/15/2003 effective date 07/04/2003</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 1.0 STAR approved 11/22/2002; OAGI reviewed 11/08/2002; effective date 01/01/2003</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="RetailDeliveryReportingHeader" />
        <xsd:element ref="RetailDeliveryReportingVehicleLineItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RetailDeliveryReportingHeader star:RetailDeliveryReportingHeader (1) (1)
RetailDeliveryReportingVehicleLineItem star:RetailDeliveryReportingVehicleLineItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:RetailDeliveryReporting
