Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: SalesLeadTrailerLineItemType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: SalesLead.xsd
Abstract
Documentation:
Detail information regarding a trailer for a particular sales lead.

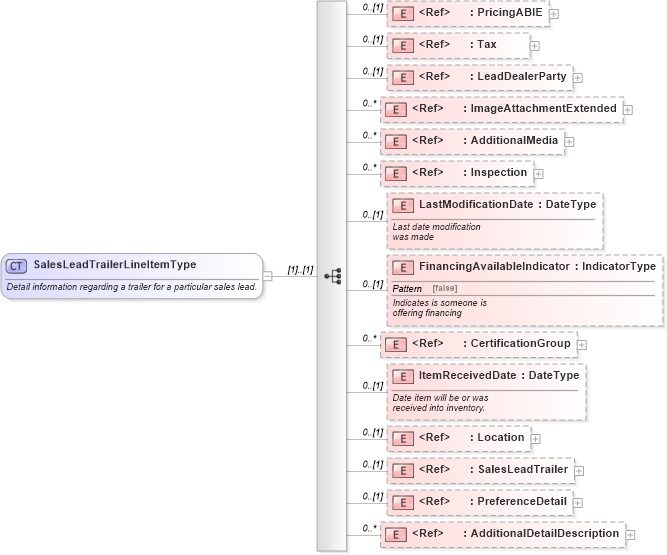

Collapse XSD Schema Diagram:
Drilldown into AdditionalDetailDescription in schema components_xsd Drilldown into PreferenceDetail in schema components_xsd Drilldown into SalesLeadTrailer in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into ItemReceivedDate in schema saleslead_xsd Drilldown into CertificationGroup in schema components_xsd Drilldown into FinancingAvailableIndicator in schema saleslead_xsd Drilldown into LastModificationDate in schema saleslead_xsd Drilldown into Inspection in schema components_xsd Drilldown into AdditionalMedia in schema components_xsd Drilldown into ImageAttachmentExtended in schema components_xsd Drilldown into LeadDealerParty in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into PricingABIE in schema components_xsdXSD Diagram of SalesLeadTrailerLineItemType in schema saleslead_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SalesLeadTrailerLineItemType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Detail information regarding a trailer for a particular sales lead.
            </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="PricingABIE" minOccurs="0" />
        <xsd:element ref="Tax" minOccurs="0" />
        <xsd:element ref="LeadDealerParty" minOccurs="0" />
        <xsd:element ref="ImageAttachmentExtended" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalMedia" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Inspection" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="LastModificationDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Last date modification
                was made</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FinancingAvailableIndicator" type="udt:IndicatorType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates is someone is
                offering financing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CertificationGroup" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ItemReceivedDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date item will be or was
                received into inventory.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Location" minOccurs="0" />
        <xsd:element ref="SalesLeadTrailer" minOccurs="0" />
        <xsd:element ref="PreferenceDetail" minOccurs="0" />
        <xsd:element ref="AdditionalDetailDescription" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PricingABIE star:PricingABIE 0 (1)
Tax star:Tax 0 (1)
LeadDealerParty star:LeadDealerParty 0 (1)
ImageAttachmentExtended star:ImageAttachmentExtended 0 unbounded
AdditionalMedia star:AdditionalMedia 0 unbounded
Inspection star:Inspection 0 unbounded
LastModificationDate star:LastModificationDate 0 (1)
FinancingAvailableIndicator star:FinancingAvailableIndicator 0 (1)
CertificationGroup star:CertificationGroup 0 unbounded
ItemReceivedDate star:ItemReceivedDate 0 (1)
Location star:Location 0 (1)
SalesLeadTrailer star:SalesLeadTrailer 0 (1)
PreferenceDetail star:PreferenceDetail 0 (1)
AdditionalDetailDescription star:AdditionalDetailDescription 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:SalesLeadTrailerLineItem
