Definition Type: Element
Name: Sender
Namespace: http://www.starstandard.org/STAR/5
Type: star:SenderType
Containing Schema: Meta.xsd
Abstract
Documentation:
This identifies characteristics and control identifiers that relate to the application that created the Business Object Document.

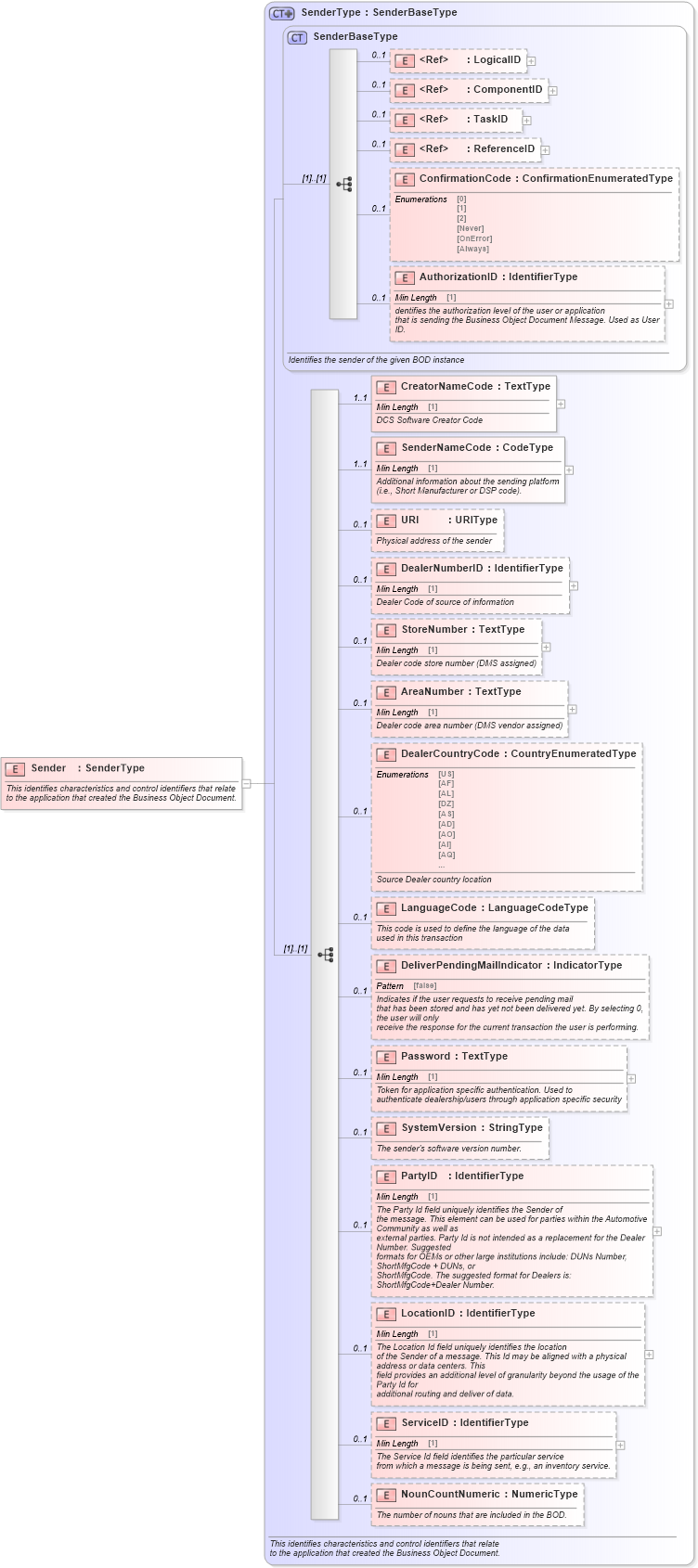

Collapse XSD Schema Diagram:
Drilldown into NounCountNumeric in schema meta_xsd Drilldown into ServiceID in schema meta_xsd Drilldown into LocationID in schema meta_xsd Drilldown into PartyID in schema meta_xsd Drilldown into SystemVersion in schema meta_xsd Drilldown into Password in schema meta_xsd Drilldown into DeliverPendingMailIndicator in schema meta_xsd Drilldown into LanguageCode in schema meta_xsd Drilldown into DealerCountryCode in schema meta_xsd Drilldown into AreaNumber in schema meta_xsd Drilldown into StoreNumber in schema meta_xsd Drilldown into DealerNumberID in schema meta_xsd Drilldown into URI in schema meta_xsd Drilldown into SenderNameCode in schema meta_xsd Drilldown into CreatorNameCode in schema meta_xsd Drilldown into AuthorizationID in schema meta_xsd Drilldown into ConfirmationCode in schema meta_xsd Drilldown into ReferenceID in schema meta_xsd Drilldown into TaskID in schema meta_xsd Drilldown into ComponentID in schema meta_xsd Drilldown into LogicalID in schema meta_xsd Drilldown into SenderBaseType in schema meta_xsd Drilldown into SenderType in schema meta_xsdXSD Diagram of Sender in schema meta_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Sender" type="SenderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/">This identifies characteristics and control identifiers that relate
            to the application that created the Business Object Document.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LogicalID star:LogicalID 0 1
ComponentID star:ComponentID 0 1
TaskID star:TaskID 0 1
ReferenceID star:ReferenceID 0 1
ConfirmationCode star:ConfirmationCode 0 1
AuthorizationID star:AuthorizationID 0 1
CreatorNameCode star:CreatorNameCode 1 1
SenderNameCode star:SenderNameCode 1 1
URI star:URI 0 1
DealerNumberID star:DealerNumberID 0 1
StoreNumber star:StoreNumber 0 1
AreaNumber star:AreaNumber 0 1
DealerCountryCode star:DealerCountryCode 0 1
LanguageCode star:LanguageCode 0 1
DeliverPendingMailIndicator star:DeliverPendingMailIndicator 0 1
Password star:Password 0 1
SystemVersion star:SystemVersion 0 1
PartyID star:PartyID 0 1
LocationID star:LocationID 0 1
ServiceID star:ServiceID 0 1
NounCountNumeric star:NounCountNumeric 0 1
