Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ServiceAppointmentHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:ServiceAppointmentHeaderType
Containing Schema: ServiceAppointment.xsd
Abstract
Documentation:
Service Appointment Header

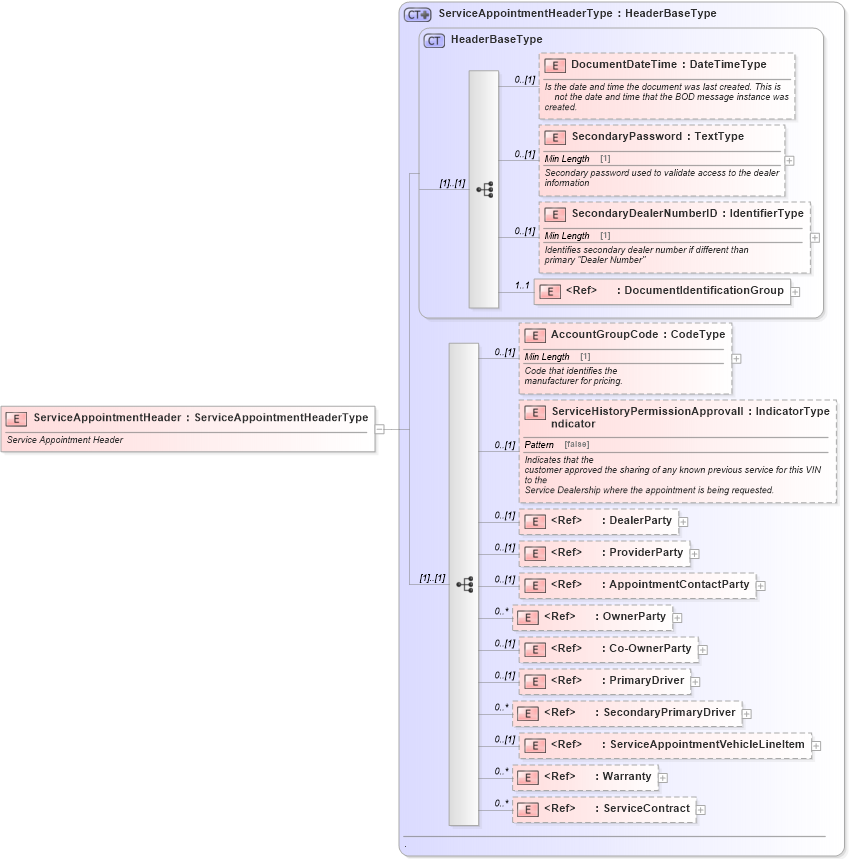

Collapse XSD Schema Diagram:
Drilldown into ServiceContract in schema components_xsd Drilldown into Warranty in schema components_xsd Drilldown into ServiceAppointmentVehicleLineItem in schema serviceappointment_xsd Drilldown into SecondaryPrimaryDriver in schema components_xsd Drilldown into PrimaryDriver in schema components_xsd Drilldown into Co-OwnerParty in schema components_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into AppointmentContactParty in schema components_xsd Drilldown into ProviderParty in schema components_xsd Drilldown into DealerParty in schema components_xsd Drilldown into ServiceHistoryPermissionApprovalIndicator in schema serviceappointment_xsd Drilldown into AccountGroupCode in schema serviceappointment_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into ServiceAppointmentHeaderType in schema serviceappointment_xsdXSD Diagram of ServiceAppointmentHeader in schema serviceappointment_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ServiceAppointmentHeader" type="ServiceAppointmentHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Service Appointment Header
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
AccountGroupCode star:AccountGroupCode 0 (1)
ServiceHistoryPermissionApprovalIndicator star:ServiceHistoryPermissionApprovalIndicator 0 (1)
DealerParty star:DealerParty 0 (1)
ProviderParty star:ProviderParty 0 (1)
AppointmentContactParty star:AppointmentContactParty 0 (1)
OwnerParty star:OwnerParty 0 unbounded
Co-OwnerParty star:Co-OwnerParty 0 (1)
PrimaryDriver star:PrimaryDriver 0 (1)
SecondaryPrimaryDriver star:SecondaryPrimaryDriver 0 unbounded
ServiceAppointmentVehicleLineItem star:ServiceAppointmentVehicleLineItem 0 (1)
Warranty star:Warranty 0 unbounded
ServiceContract star:ServiceContract 0 unbounded
Collapse Derivation Tree:
