Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ServiceLaborHistoryType
Namespace: http://www.starstandard.org/STAR/5
Type: star:ServiceLaborBaseType
Containing Schema: Components.xsd
Abstract

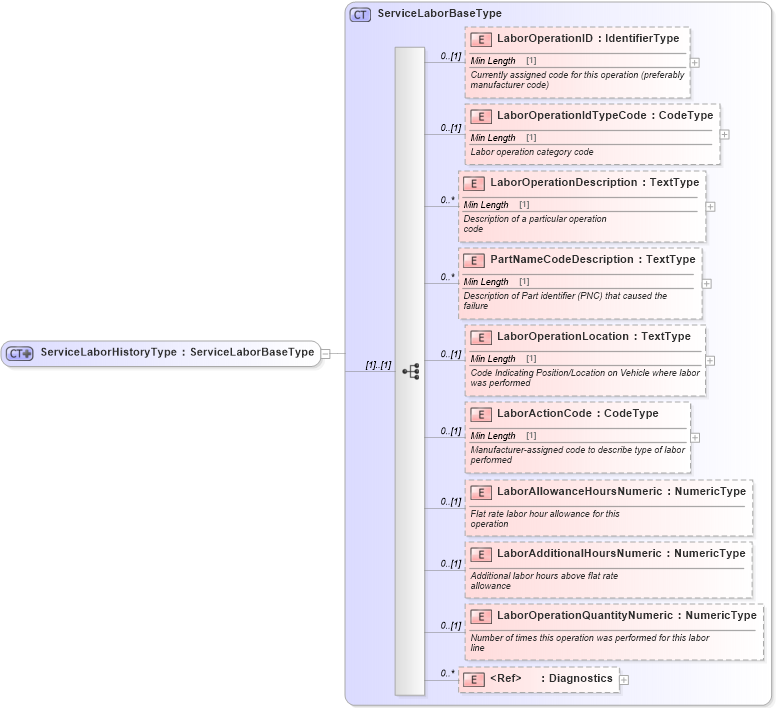

Collapse XSD Schema Diagram:
Drilldown into Diagnostics in schema components_xsd Drilldown into LaborOperationQuantityNumeric in schema components_xsd Drilldown into LaborAdditionalHoursNumeric in schema components_xsd Drilldown into LaborAllowanceHoursNumeric in schema components_xsd Drilldown into LaborActionCode in schema components_xsd Drilldown into LaborOperationLocation in schema components_xsd Drilldown into PartNameCodeDescription in schema components_xsd Drilldown into LaborOperationDescription in schema components_xsd Drilldown into LaborOperationIdTypeCode in schema components_xsd Drilldown into LaborOperationID in schema components_xsd Drilldown into ServiceLaborBaseType in schema components_xsdXSD Diagram of ServiceLaborHistoryType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServiceLaborHistoryType">
    <xsd:complexContent>
        <xsd:extension base="ServiceLaborBaseType" />
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LaborOperationID star:LaborOperationID 0 (1)
LaborOperationIdTypeCode star:LaborOperationIdTypeCode 0 (1)
LaborOperationDescription star:LaborOperationDescription 0 unbounded
PartNameCodeDescription star:PartNameCodeDescription 0 unbounded
LaborOperationLocation star:LaborOperationLocation 0 (1)
LaborActionCode star:LaborActionCode 0 (1)
LaborAllowanceHoursNumeric star:LaborAllowanceHoursNumeric 0 (1)
LaborAdditionalHoursNumeric star:LaborAdditionalHoursNumeric 0 (1)
LaborOperationQuantityNumeric star:LaborOperationQuantityNumeric 0 (1)
Diagnostics star:Diagnostics 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:CampaignAssociatedServiceLaborHistory, star:ServiceLaborHistory, star:WarrantyCancelServiceLaborHistory
