Definition Type: Element
Name: ServiceParts
Namespace: http://www.starstandard.org/STAR/5
Type: star:ServicePartsType
Containing Schema: Components.xsd
Abstract
Documentation:
The ServiceParts Component represents information about the parts used for the vehicle repair.

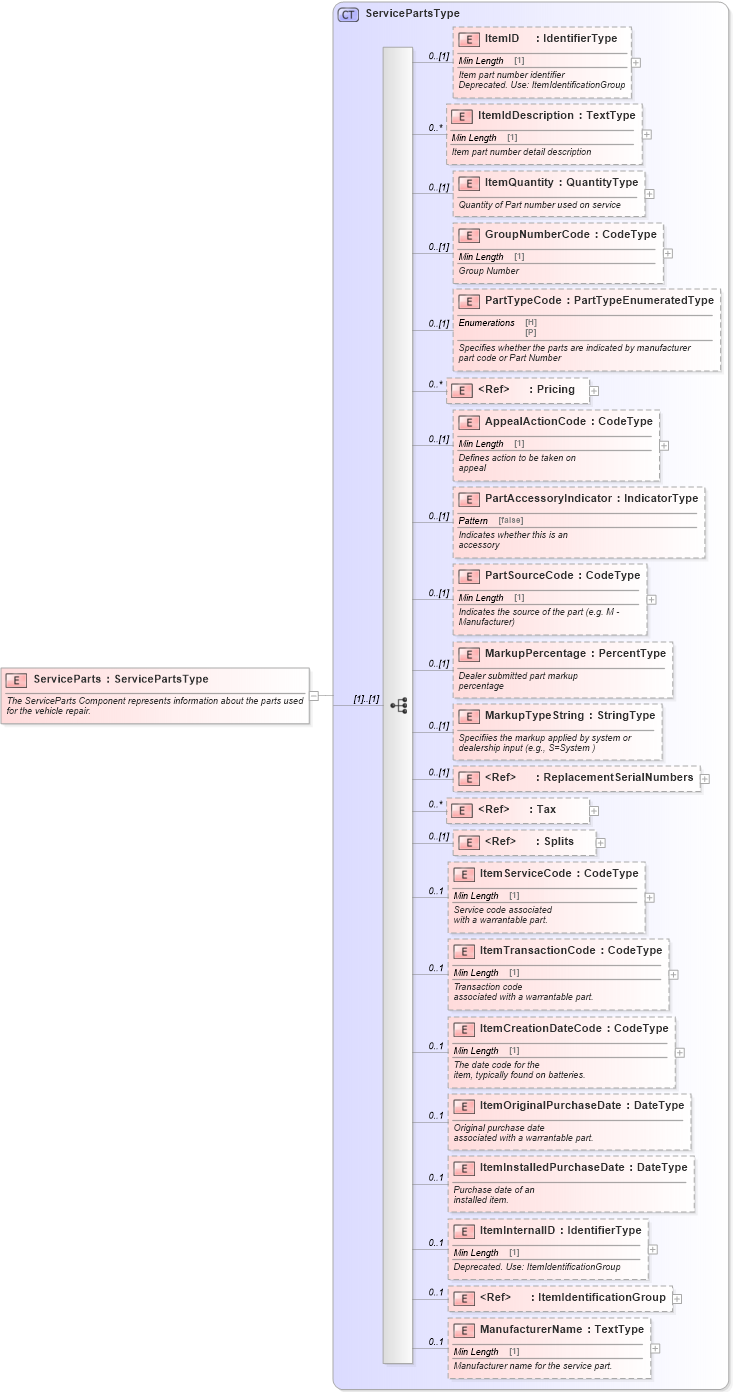

Collapse XSD Schema Diagram:
Drilldown into ManufacturerName in schema components_xsd Drilldown into ItemIdentificationGroup in schema components_xsd Drilldown into ItemInternalID in schema components_xsd Drilldown into ItemInstalledPurchaseDate in schema components_xsd Drilldown into ItemOriginalPurchaseDate in schema components_xsd Drilldown into ItemCreationDateCode in schema components_xsd Drilldown into ItemTransactionCode in schema components_xsd Drilldown into ItemServiceCode in schema components_xsd Drilldown into Splits in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into ReplacementSerialNumbers in schema components_xsd Drilldown into MarkupTypeString in schema components_xsd Drilldown into MarkupPercentage in schema components_xsd Drilldown into PartSourceCode in schema components_xsd Drilldown into PartAccessoryIndicator in schema components_xsd Drilldown into AppealActionCode in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into PartTypeCode in schema components_xsd Drilldown into GroupNumberCode in schema components_xsd Drilldown into ItemQuantity in schema components_xsd Drilldown into ItemIdDescription in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into ServicePartsType in schema components_xsdXSD Diagram of ServiceParts in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ServiceParts" type="ServicePartsType">
    <xsd:annotation>
        <xsd:documentation>The ServiceParts Component represents information about the parts used for the vehicle repair.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID star:ItemID 0 (1)
ItemIdDescription star:ItemIdDescription 0 unbounded
ItemQuantity star:ItemQuantity 0 (1)
GroupNumberCode star:GroupNumberCode 0 (1)
PartTypeCode star:PartTypeCode 0 (1)
Pricing star:Pricing 0 unbounded
AppealActionCode star:AppealActionCode 0 (1)
PartAccessoryIndicator star:PartAccessoryIndicator 0 (1)
PartSourceCode star:PartSourceCode 0 (1)
MarkupPercentage star:MarkupPercentage 0 (1)
MarkupTypeString star:MarkupTypeString 0 (1)
ReplacementSerialNumbers star:ReplacementSerialNumbers 0 (1)
Tax star:Tax 0 unbounded
Splits star:Splits 0 (1)
ItemServiceCode star:ItemServiceCode 0 1
ItemTransactionCode star:ItemTransactionCode 0 1
ItemCreationDateCode star:ItemCreationDateCode 0 1
ItemOriginalPurchaseDate star:ItemOriginalPurchaseDate 0 1
ItemInstalledPurchaseDate star:ItemInstalledPurchaseDate 0 1
ItemInternalID star:ItemInternalID 0 1
ItemIdentificationGroup star:ItemIdentificationGroup 0 1
ManufacturerName star:ManufacturerName 0 1
