Definition Type: ComplexType
Name: ServicePartsType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

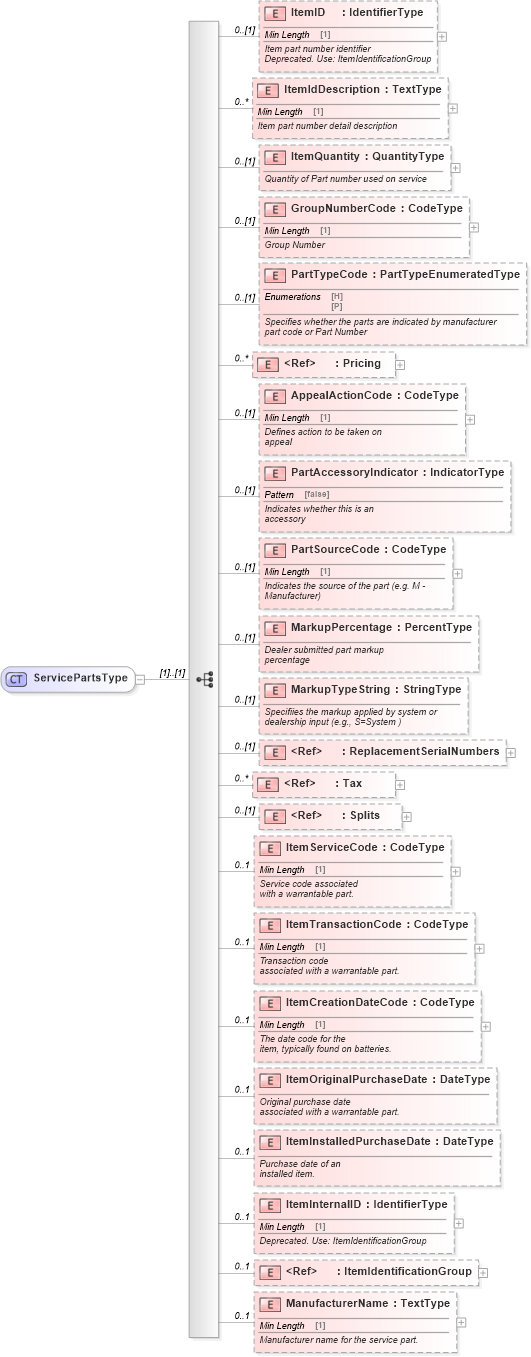

Collapse XSD Schema Diagram:
Drilldown into ManufacturerName in schema components_xsd Drilldown into ItemIdentificationGroup in schema components_xsd Drilldown into ItemInternalID in schema components_xsd Drilldown into ItemInstalledPurchaseDate in schema components_xsd Drilldown into ItemOriginalPurchaseDate in schema components_xsd Drilldown into ItemCreationDateCode in schema components_xsd Drilldown into ItemTransactionCode in schema components_xsd Drilldown into ItemServiceCode in schema components_xsd Drilldown into Splits in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into ReplacementSerialNumbers in schema components_xsd Drilldown into MarkupTypeString in schema components_xsd Drilldown into MarkupPercentage in schema components_xsd Drilldown into PartSourceCode in schema components_xsd Drilldown into PartAccessoryIndicator in schema components_xsd Drilldown into AppealActionCode in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into PartTypeCode in schema components_xsd Drilldown into GroupNumberCode in schema components_xsd Drilldown into ItemQuantity in schema components_xsd Drilldown into ItemIdDescription in schema components_xsd Drilldown into ItemID in schema components_xsdXSD Diagram of ServicePartsType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServicePartsType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="ItemID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        Item part number identifier
                    </xsd:documentation>
                <xsd:documentation>Deprecated. Use: ItemIdentificationGroup</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="ItemIdDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Item part number detail description
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ItemQuantity" type="sqdt:QuantityType">
            <xsd:annotation>
                <xsd:documentation>
                        Quantity of Part number used on service
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="GroupNumberCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Group Number
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PartTypeCode" type="scl:PartTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Specifies whether the parts are indicated by manufacturer
                            part code or Part Number
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Pricing">
            <xsd:annotation>
                <xsd:documentation>
                                Price and cost for parts and return
                                core
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AppealActionCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                                Defines action to be taken on
                                appeal
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PartAccessoryIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                                Indicates whether this is an
                                accessory
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PartSourceCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                                Indicates the source of the part (e.g. M -
                                    Manufacturer)
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MarkupPercentage" type="udt:PercentType">
            <xsd:annotation>
                <xsd:documentation>
                                Dealer submitted part markup
                                percentage
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MarkupTypeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                                Specifiies the markup applied by system or
                                    dealership input (e.g., S=System )
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ReplacementSerialNumbers">
            <xsd:annotation>
                <xsd:documentation>
                                ReplacementSerialNumber
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Tax">
            <xsd:annotation>
                <xsd:documentation>
                                Actual amount of tax paid on
                                parts
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="Splits">
            <xsd:annotation>
                <xsd:documentation>
                                Part Adjustment
                            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ItemServiceCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Service code associated
                with a warrantable part.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ItemTransactionCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Transaction code
                associated with a warrantable part.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ItemCreationDateCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date code for the
                item, typically found on batteries.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ItemOriginalPurchaseDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Original purchase date
                associated with a warrantable part.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ItemInstalledPurchaseDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Purchase date of an
                installed item.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ItemInternalID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>Deprecated. Use: ItemIdentificationGroup</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" ref="ItemIdentificationGroup" />
        <xsd:element maxOccurs="1" minOccurs="0" name="ManufacturerName" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                            Manufacturer name for the service part.
                        </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID star:ItemID 0 (1)
ItemIdDescription star:ItemIdDescription 0 unbounded
ItemQuantity star:ItemQuantity 0 (1)
GroupNumberCode star:GroupNumberCode 0 (1)
PartTypeCode star:PartTypeCode 0 (1)
Pricing star:Pricing 0 unbounded
AppealActionCode star:AppealActionCode 0 (1)
PartAccessoryIndicator star:PartAccessoryIndicator 0 (1)
PartSourceCode star:PartSourceCode 0 (1)
MarkupPercentage star:MarkupPercentage 0 (1)
MarkupTypeString star:MarkupTypeString 0 (1)
ReplacementSerialNumbers star:ReplacementSerialNumbers 0 (1)
Tax star:Tax 0 unbounded
Splits star:Splits 0 (1)
ItemServiceCode star:ItemServiceCode 0 1
ItemTransactionCode star:ItemTransactionCode 0 1
ItemCreationDateCode star:ItemCreationDateCode 0 1
ItemOriginalPurchaseDate star:ItemOriginalPurchaseDate 0 1
ItemInstalledPurchaseDate star:ItemInstalledPurchaseDate 0 1
ItemInternalID star:ItemInternalID 0 1
ItemIdentificationGroup star:ItemIdentificationGroup 0 1
ManufacturerName star:ManufacturerName 0 1
Collapse Derivation Tree:
Collapse References:
star:ServiceParts
