Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: StatusEnabledLineType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:LineType
Containing Schema: Components.xsd
Abstract

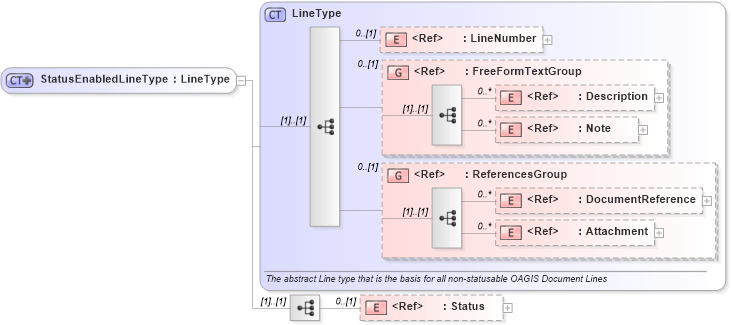

Collapse XSD Schema Diagram:
Drilldown into Status in schema components_xsd1 Drilldown into Attachment in schema components_xsd1 Drilldown into DocumentReference in schema components_xsd1 Drilldown into ReferencesGroup in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into LineNumber in schema fields_xsd1 Drilldown into LineType in schema components_xsd1XSD Diagram of StatusEnabledLineType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="StatusEnabledLineType">
    <xsd:complexContent>
        <xsd:extension base="LineType">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="Status" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber oagis:LineNumber 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
DocumentReference oagis:DocumentReference 0 unbounded
Attachment oagis:Attachment 0 unbounded
Status oagis:Status 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
<xs:group> oagis:ReferencesGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:RequestLineType
