Definition Type: ComplexType
Name: OrderLineType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:ProcurementLineType
Containing Schema: OrderManagementComponents.xsd
Abstract

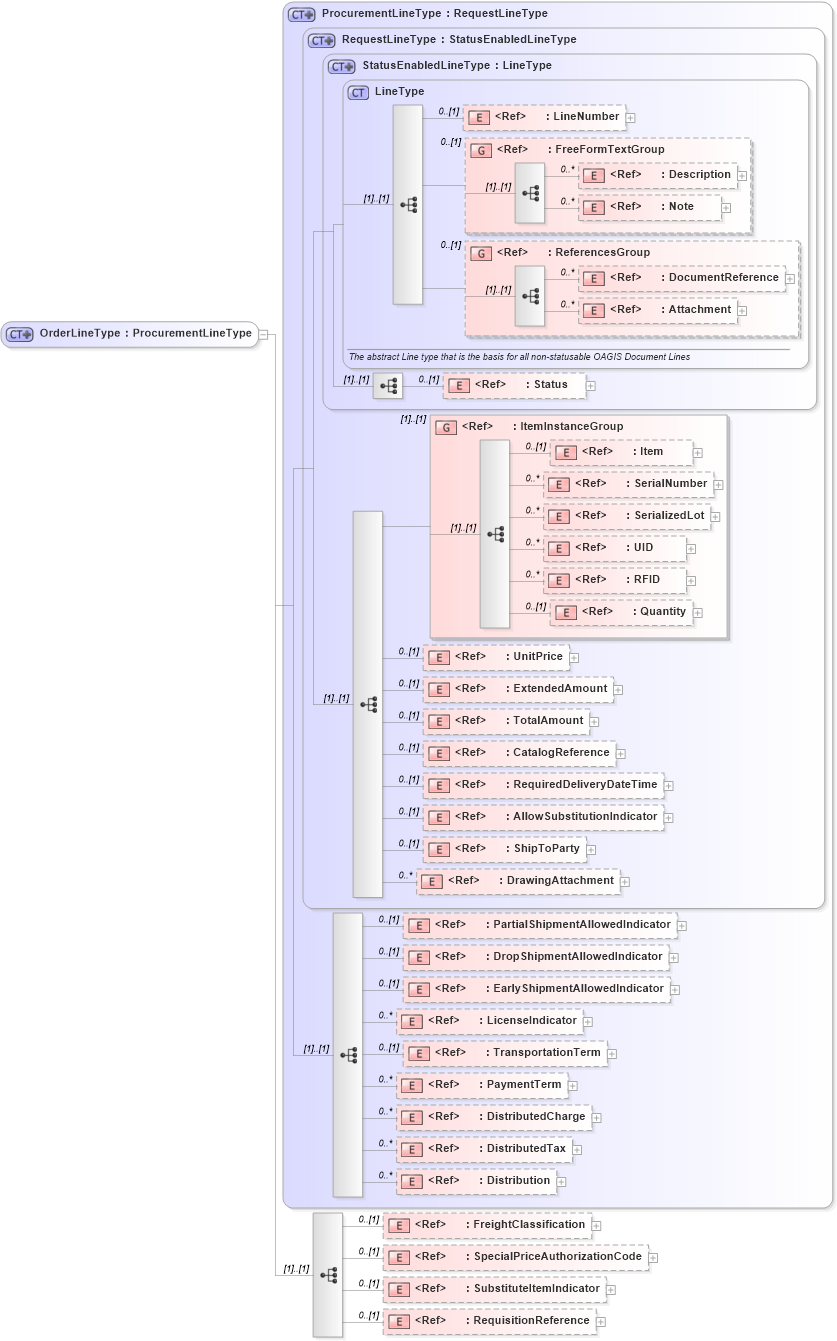

Collapse XSD Schema Diagram:
Drilldown into RequisitionReference in schema components_xsd1 Drilldown into SubstituteItemIndicator in schema fields_xsd1 Drilldown into SpecialPriceAuthorizationCode in schema fields_xsd1 Drilldown into FreightClassification in schema components_xsd1 Drilldown into Distribution in schema components_xsd1 Drilldown into DistributedTax in schema components_xsd1 Drilldown into DistributedCharge in schema components_xsd1 Drilldown into PaymentTerm in schema components_xsd1 Drilldown into TransportationTerm in schema components_xsd1 Drilldown into LicenseIndicator in schema fields_xsd1 Drilldown into EarlyShipmentAllowedIndicator in schema fields_xsd1 Drilldown into DropShipmentAllowedIndicator in schema fields_xsd1 Drilldown into PartialShipmentAllowedIndicator in schema fields_xsd1 Drilldown into DrawingAttachment in schema components_xsd1 Drilldown into ShipToParty in schema components_xsd1 Drilldown into AllowSubstitutionIndicator in schema fields_xsd1 Drilldown into RequiredDeliveryDateTime in schema fields_xsd1 Drilldown into CatalogReference in schema components_xsd1 Drilldown into TotalAmount in schema fields_xsd1 Drilldown into ExtendedAmount in schema fields_xsd1 Drilldown into UnitPrice in schema components_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into UID in schema fields_xsd1 Drilldown into SerializedLot in schema components_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Item in schema components_xsd1 Drilldown into ItemInstanceGroup in schema components_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into Attachment in schema components_xsd1 Drilldown into DocumentReference in schema components_xsd1 Drilldown into ReferencesGroup in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into LineNumber in schema fields_xsd1 Drilldown into LineType in schema components_xsd1 Drilldown into StatusEnabledLineType in schema components_xsd1 Drilldown into RequestLineType in schema ordermanagementcomponents_xsd Drilldown into ProcurementLineType in schema ordermanagementcomponents_xsdXSD Diagram of OrderLineType in schema ordermanagementcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="OrderLineType">
    <xsd:complexContent>
        <xsd:extension base="ProcurementLineType">
            <xsd:sequence>
                <xsd:element ref="FreightClassification" minOccurs="0" />
                <xsd:element ref="SpecialPriceAuthorizationCode" minOccurs="0" />
                <xsd:element ref="SubstituteItemIndicator" minOccurs="0" />
                <xsd:element ref="RequisitionReference" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber oagis:LineNumber 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
DocumentReference oagis:DocumentReference 0 unbounded
Attachment oagis:Attachment 0 unbounded
Status oagis:Status 0 (1)
Item oagis:Item 0 (1)
SerialNumber oagis:SerialNumber 0 unbounded
SerializedLot oagis:SerializedLot 0 unbounded
UID oagis:UID 0 unbounded
RFID oagis:RFID 0 unbounded
Quantity oagis:Quantity 0 (1)
UnitPrice oagis:UnitPrice 0 (1)
ExtendedAmount oagis:ExtendedAmount 0 (1)
TotalAmount oagis:TotalAmount 0 (1)
CatalogReference oagis:CatalogReference 0 (1)
RequiredDeliveryDateTime oagis:RequiredDeliveryDateTime 0 (1)
AllowSubstitutionIndicator oagis:AllowSubstitutionIndicator 0 (1)
ShipToParty oagis:ShipToParty 0 (1)
DrawingAttachment oagis:DrawingAttachment 0 unbounded
PartialShipmentAllowedIndicator oagis:PartialShipmentAllowedIndicator 0 (1)
DropShipmentAllowedIndicator oagis:DropShipmentAllowedIndicator 0 (1)
EarlyShipmentAllowedIndicator oagis:EarlyShipmentAllowedIndicator 0 (1)
LicenseIndicator oagis:LicenseIndicator 0 unbounded
TransportationTerm oagis:TransportationTerm 0 (1)
PaymentTerm oagis:PaymentTerm 0 unbounded
DistributedCharge oagis:DistributedCharge 0 unbounded
DistributedTax oagis:DistributedTax 0 unbounded
Distribution oagis:Distribution 0 unbounded
FreightClassification oagis:FreightClassification 0 (1)
SpecialPriceAuthorizationCode oagis:SpecialPriceAuthorizationCode 0 (1)
SubstituteItemIndicator oagis:SubstituteItemIndicator 0 (1)
RequisitionReference oagis:RequisitionReference 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
<xs:group> oagis:ReferencesGroup 0 (1)
<xs:group> oagis:ItemInstanceGroup (1) (1)
Collapse Derivation Tree:
