Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: SupersededPartDetailType
Namespace: http://www.starstandard.org/STAR/5
Type: star:SupersedingPartDetailType
Containing Schema: Components.xsd
Abstract
Documentation:
The SupersededPartDetail component identifies the part that is being superseded.

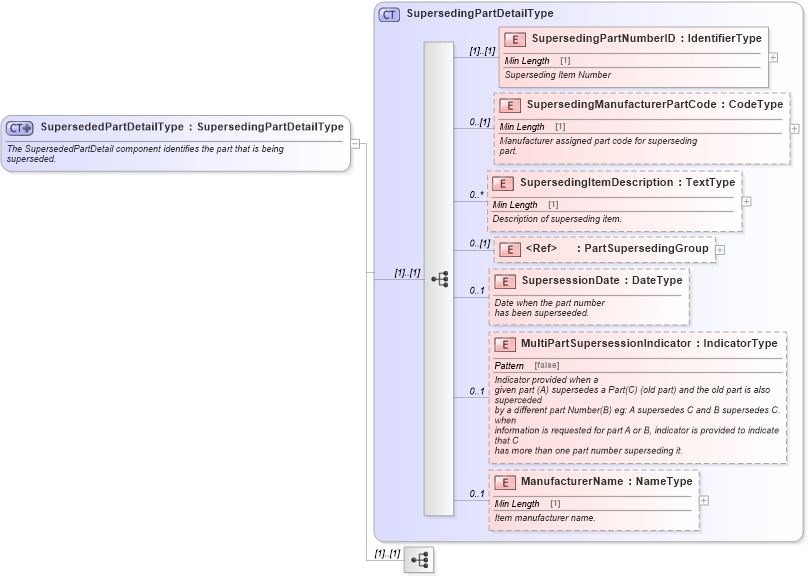

Collapse XSD Schema Diagram:
Drilldown into ManufacturerName in schema components_xsd Drilldown into MultiPartSupersessionIndicator in schema components_xsd Drilldown into SupersessionDate in schema components_xsd Drilldown into PartSupersedingGroup in schema components_xsd Drilldown into SupersedingItemDescription in schema components_xsd Drilldown into SupersedingManufacturerPartCode in schema components_xsd Drilldown into SupersedingPartNumberID in schema components_xsd Drilldown into SupersedingPartDetailType in schema components_xsdXSD Diagram of SupersededPartDetailType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SupersededPartDetailType">
    <xsd:annotation>
        <xsd:documentation>The SupersededPartDetail component identifies the part that is being
                superseded.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="SupersedingPartDetailType">
            <xsd:sequence>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SupersedingPartNumberID star:SupersedingPartNumberID (1) (1)
SupersedingManufacturerPartCode star:SupersedingManufacturerPartCode 0 (1)
SupersedingItemDescription star:SupersedingItemDescription 0 unbounded
PartSupersedingGroup star:PartSupersedingGroup 0 (1)
SupersessionDate star:SupersessionDate 0 1
MultiPartSupersessionIndicator star:MultiPartSupersessionIndicator 0 1
ManufacturerName star:ManufacturerName 0 1
Collapse Derivation Tree:
Collapse References:
star:SupersededPartDetail
