Definition Type: ComplexType
Name: VehicleOrderVehicleLineItemType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleOrder.xsd
Abstract

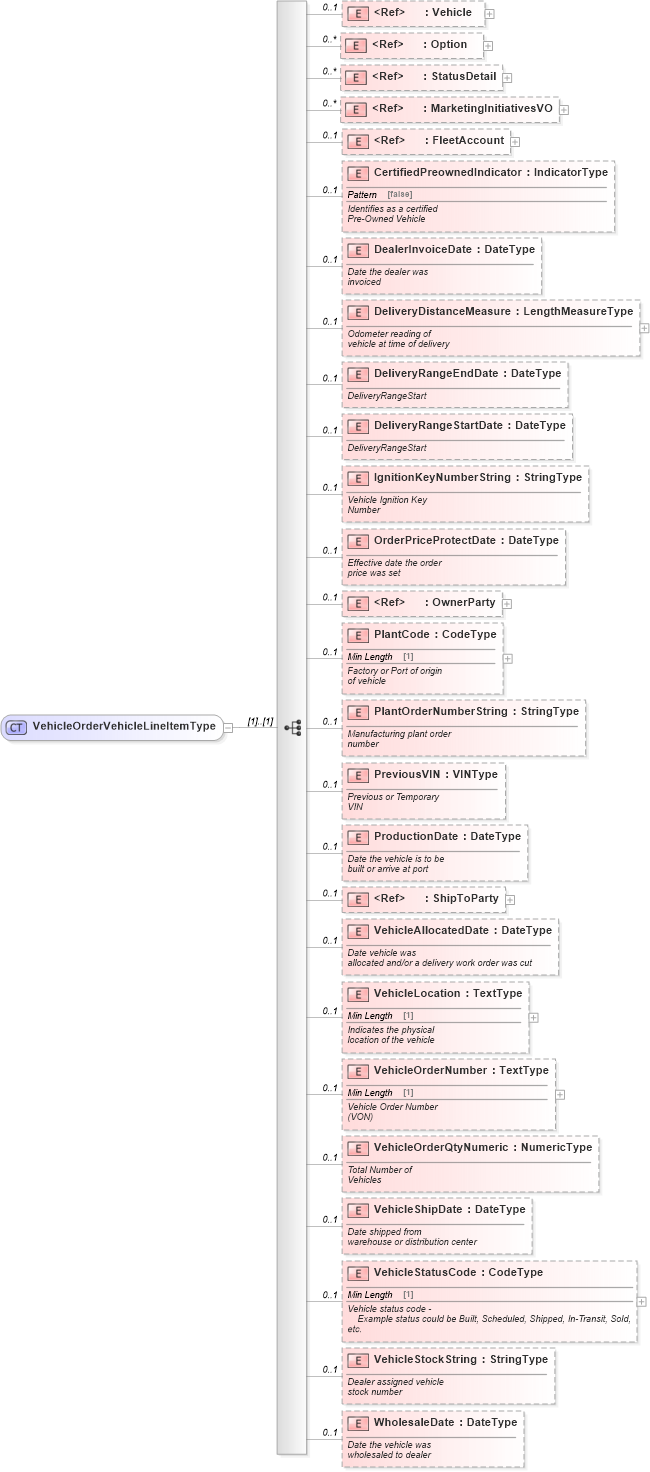

Collapse XSD Schema Diagram:
Drilldown into WholesaleDate in schema vehicleorder_xsd Drilldown into VehicleStockString in schema vehicleorder_xsd Drilldown into VehicleStatusCode in schema vehicleorder_xsd Drilldown into VehicleShipDate in schema vehicleorder_xsd Drilldown into VehicleOrderQtyNumeric in schema vehicleorder_xsd Drilldown into VehicleOrderNumber in schema vehicleorder_xsd Drilldown into VehicleLocation in schema vehicleorder_xsd Drilldown into VehicleAllocatedDate in schema vehicleorder_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into ProductionDate in schema vehicleorder_xsd Drilldown into PreviousVIN in schema vehicleorder_xsd Drilldown into PlantOrderNumberString in schema vehicleorder_xsd Drilldown into PlantCode in schema vehicleorder_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into OrderPriceProtectDate in schema vehicleorder_xsd Drilldown into IgnitionKeyNumberString in schema vehicleorder_xsd Drilldown into DeliveryRangeStartDate in schema vehicleorder_xsd Drilldown into DeliveryRangeEndDate in schema vehicleorder_xsd Drilldown into DeliveryDistanceMeasure in schema vehicleorder_xsd Drilldown into DealerInvoiceDate in schema vehicleorder_xsd Drilldown into CertifiedPreownedIndicator in schema vehicleorder_xsd Drilldown into FleetAccount in schema components_xsd Drilldown into MarketingInitiativesVO in schema components_xsd Drilldown into StatusDetail in schema components_xsd Drilldown into Option in schema components_xsd Drilldown into Vehicle in schema components_xsdXSD Diagram of VehicleOrderVehicleLineItemType in schema vehicleorder_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleOrderVehicleLineItemType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Vehicle" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Option" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="StatusDetail" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MarketingInitiativesVO" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FleetAccount" minOccurs="0" maxOccurs="1" />
        <xsd:element name="CertifiedPreownedIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies as a certified
                Pre-Owned Vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DealerInvoiceDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date the dealer was
                invoiced</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of
                vehicle at time of delivery</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryRangeEndDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">DeliveryRangeStart</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryRangeStartDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">DeliveryRangeStart</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IgnitionKeyNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Ignition Key
                Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OrderPriceProtectDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Effective date the order
                price was set</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OwnerParty" minOccurs="0" maxOccurs="1" />
        <xsd:element name="PlantCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Factory or Port of origin
                of vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PlantOrderNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturing plant order
                number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PreviousVIN" type="sqdt:VINType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Previous or Temporary
            VIN</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ProductionDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date the vehicle is to be
                built or arrive at port</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ShipToParty" minOccurs="0" maxOccurs="1" />
        <xsd:element name="VehicleAllocatedDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date vehicle was
                allocated and/or a delivery work order was cut</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleLocation" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the physical
                location of the vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleOrderNumber" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Order Number
                (VON)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleOrderQtyNumeric" type="udt:NumericType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Total Number of
            Vehicles</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleShipDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date shipped from
                warehouse or distribution center</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStatusCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle status code -
                Example status could be Built, Scheduled, Shipped, In-Transit, Sold,
            etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStockString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer assigned vehicle
                stock number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="WholesaleDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date the vehicle was
                wholesaled to dealer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
Option star:Option 0 unbounded
StatusDetail star:StatusDetail 0 unbounded
MarketingInitiativesVO star:MarketingInitiativesVO 0 unbounded
FleetAccount star:FleetAccount 0 1
CertifiedPreownedIndicator star:CertifiedPreownedIndicator 0 1
DealerInvoiceDate star:DealerInvoiceDate 0 1
DeliveryDistanceMeasure star:DeliveryDistanceMeasure 0 1
DeliveryRangeEndDate star:DeliveryRangeEndDate 0 1
DeliveryRangeStartDate star:DeliveryRangeStartDate 0 1
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 1
OrderPriceProtectDate star:OrderPriceProtectDate 0 1
OwnerParty star:OwnerParty 0 1
PlantCode star:PlantCode 0 1
PlantOrderNumberString star:PlantOrderNumberString 0 1
PreviousVIN star:PreviousVIN 0 1
ProductionDate star:ProductionDate 0 1
ShipToParty star:ShipToParty 0 1
VehicleAllocatedDate star:VehicleAllocatedDate 0 1
VehicleLocation star:VehicleLocation 0 1
VehicleOrderNumber star:VehicleOrderNumber 0 1
VehicleOrderQtyNumeric star:VehicleOrderQtyNumeric 0 1
VehicleShipDate star:VehicleShipDate 0 1
VehicleStatusCode star:VehicleStatusCode 0 1
VehicleStockString star:VehicleStockString 0 1
WholesaleDate star:WholesaleDate 0 1
Collapse Derivation Tree:
Collapse References:
star:VehicleOrderVehicleLineItem
