Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: VehiclePaymentsHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:VehiclePaymentsHeaderType
Containing Schema: VehiclePayments.xsd
Abstract
Documentation:
Vehicle Payments Header

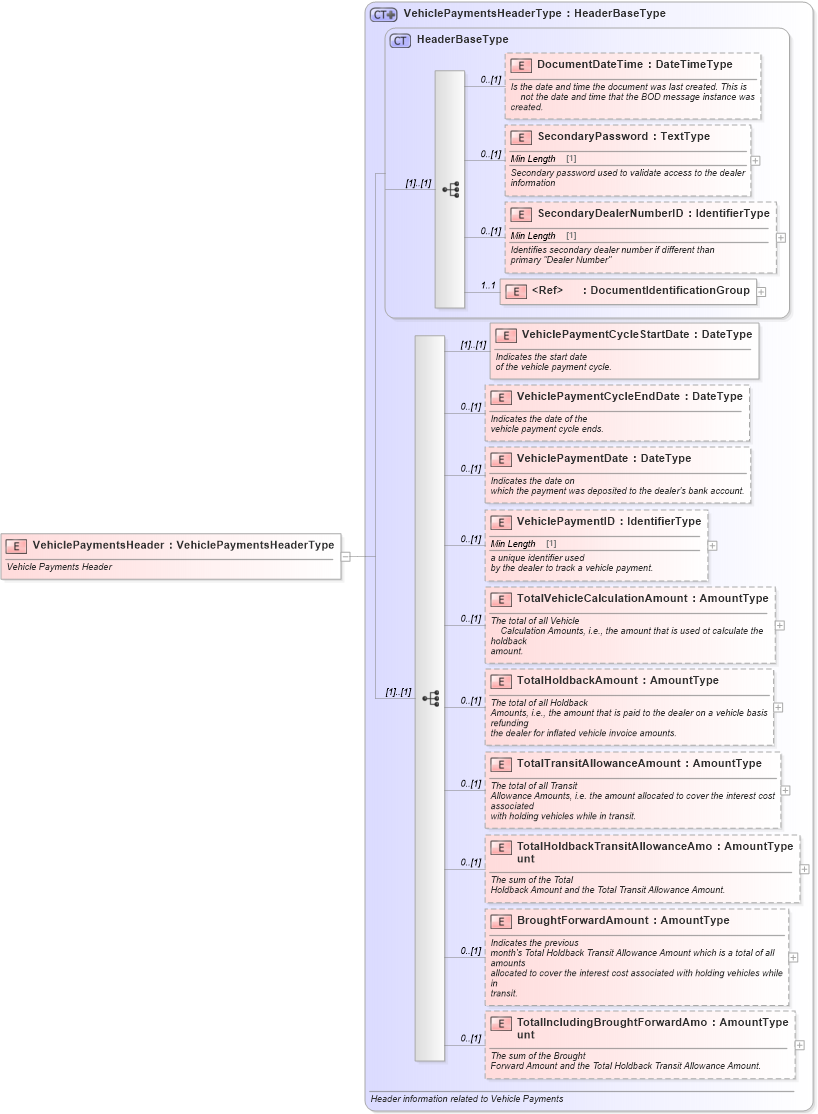

Collapse XSD Schema Diagram:
Drilldown into TotalIncludingBroughtForwardAmount in schema vehiclepayments_xsd Drilldown into BroughtForwardAmount in schema vehiclepayments_xsd Drilldown into TotalHoldbackTransitAllowanceAmount in schema vehiclepayments_xsd Drilldown into TotalTransitAllowanceAmount in schema vehiclepayments_xsd Drilldown into TotalHoldbackAmount in schema vehiclepayments_xsd Drilldown into TotalVehicleCalculationAmount in schema vehiclepayments_xsd Drilldown into VehiclePaymentID in schema vehiclepayments_xsd Drilldown into VehiclePaymentDate in schema vehiclepayments_xsd Drilldown into VehiclePaymentCycleEndDate in schema vehiclepayments_xsd Drilldown into VehiclePaymentCycleStartDate in schema vehiclepayments_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into VehiclePaymentsHeaderType in schema vehiclepayments_xsdXSD Diagram of VehiclePaymentsHeader in schema vehiclepayments_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="VehiclePaymentsHeader" type="VehiclePaymentsHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Vehicle Payments Header
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
VehiclePaymentCycleStartDate star:VehiclePaymentCycleStartDate (1) (1)
VehiclePaymentCycleEndDate star:VehiclePaymentCycleEndDate 0 (1)
VehiclePaymentDate star:VehiclePaymentDate 0 (1)
VehiclePaymentID star:VehiclePaymentID 0 (1)
TotalVehicleCalculationAmount star:TotalVehicleCalculationAmount 0 (1)
TotalHoldbackAmount star:TotalHoldbackAmount 0 (1)
TotalTransitAllowanceAmount star:TotalTransitAllowanceAmount 0 (1)
TotalHoldbackTransitAllowanceAmount star:TotalHoldbackTransitAllowanceAmount 0 (1)
BroughtForwardAmount star:BroughtForwardAmount 0 (1)
TotalIncludingBroughtForwardAmount star:TotalIncludingBroughtForwardAmount 0 (1)
Collapse Derivation Tree:
