Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehiclePaymentsHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: VehiclePayments.xsd
Abstract
Documentation:
Header information related to Vehicle Payments

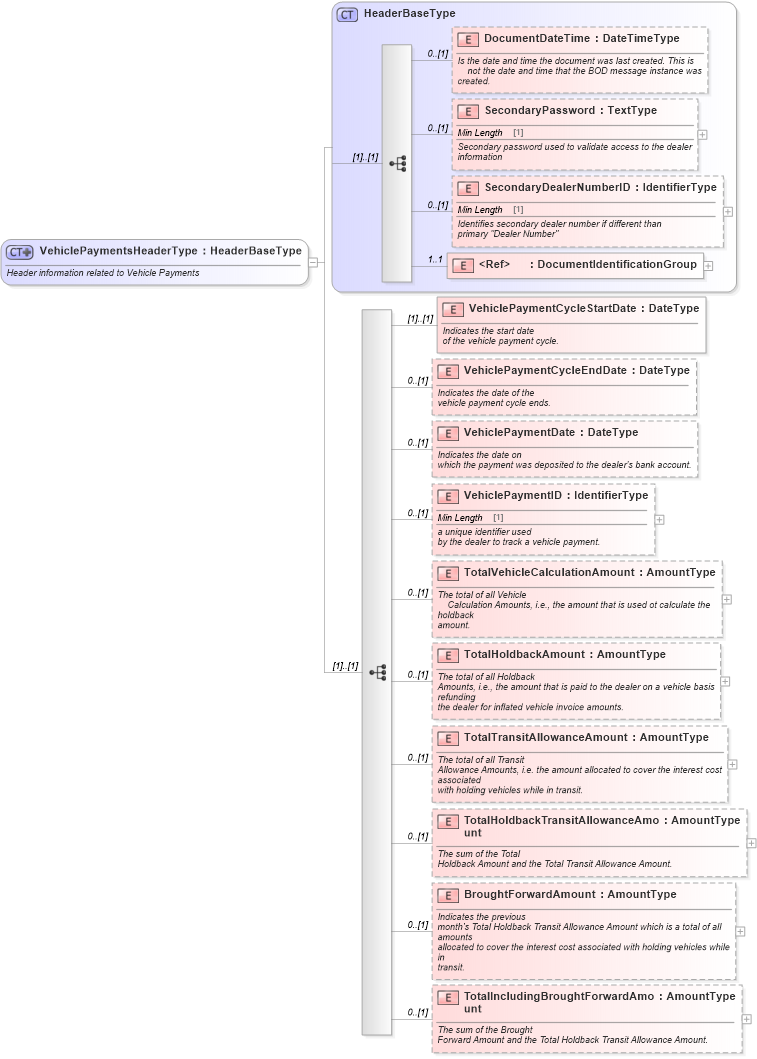

Collapse XSD Schema Diagram:
Drilldown into TotalIncludingBroughtForwardAmount in schema vehiclepayments_xsd Drilldown into BroughtForwardAmount in schema vehiclepayments_xsd Drilldown into TotalHoldbackTransitAllowanceAmount in schema vehiclepayments_xsd Drilldown into TotalTransitAllowanceAmount in schema vehiclepayments_xsd Drilldown into TotalHoldbackAmount in schema vehiclepayments_xsd Drilldown into TotalVehicleCalculationAmount in schema vehiclepayments_xsd Drilldown into VehiclePaymentID in schema vehiclepayments_xsd Drilldown into VehiclePaymentDate in schema vehiclepayments_xsd Drilldown into VehiclePaymentCycleEndDate in schema vehiclepayments_xsd Drilldown into VehiclePaymentCycleStartDate in schema vehiclepayments_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of VehiclePaymentsHeaderType in schema vehiclepayments_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehiclePaymentsHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Header information related to Vehicle Payments</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <xsd:element name="VehiclePaymentCycleStartDate" type="udt:DateType">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the start date
                of the vehicle payment cycle.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="VehiclePaymentCycleEndDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the date of the
                vehicle payment cycle ends.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="VehiclePaymentDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the date on
                which the payment was deposited to the dealer's bank account.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="VehiclePaymentID" type="udt:IdentifierType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">a unique identifier used
                by the dealer to track a vehicle payment.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalVehicleCalculationAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total of all Vehicle
                Calculation Amounts, i.e., the amount that is used ot calculate the holdback
            amount.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalHoldbackAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total of all Holdback
                Amounts, i.e., the amount that is paid to the dealer on a vehicle basis refunding
                the dealer for inflated vehicle invoice amounts.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalTransitAllowanceAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total of all Transit
                Allowance Amounts, i.e. the amount allocated to cover the interest cost associated
                with holding vehicles while in transit.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalHoldbackTransitAllowanceAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The sum of the Total
                Holdback Amount and the Total Transit Allowance Amount.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="BroughtForwardAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the previous
                month's Total Holdback Transit Allowance Amount which is a total of all amounts
                allocated to cover the interest cost associated with holding vehicles while in
                transit.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalIncludingBroughtForwardAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The sum of the Brought
                Forward Amount and the Total Holdback Transit Allowance Amount.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
VehiclePaymentCycleStartDate star:VehiclePaymentCycleStartDate (1) (1)
VehiclePaymentCycleEndDate star:VehiclePaymentCycleEndDate 0 (1)
VehiclePaymentDate star:VehiclePaymentDate 0 (1)
VehiclePaymentID star:VehiclePaymentID 0 (1)
TotalVehicleCalculationAmount star:TotalVehicleCalculationAmount 0 (1)
TotalHoldbackAmount star:TotalHoldbackAmount 0 (1)
TotalTransitAllowanceAmount star:TotalTransitAllowanceAmount 0 (1)
TotalHoldbackTransitAllowanceAmount star:TotalHoldbackTransitAllowanceAmount 0 (1)
BroughtForwardAmount star:BroughtForwardAmount 0 (1)
TotalIncludingBroughtForwardAmount star:TotalIncludingBroughtForwardAmount 0 (1)
Collapse Derivation Tree:
Collapse References:
star:VehiclePaymentsHeader
