Definition Type: Element
Name: VehicleServiceHistoryHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:VehicleServiceHistoryHeaderType
Containing Schema: VehicleServiceHistory.xsd
Abstract
Documentation:
Vehicle Service History Header

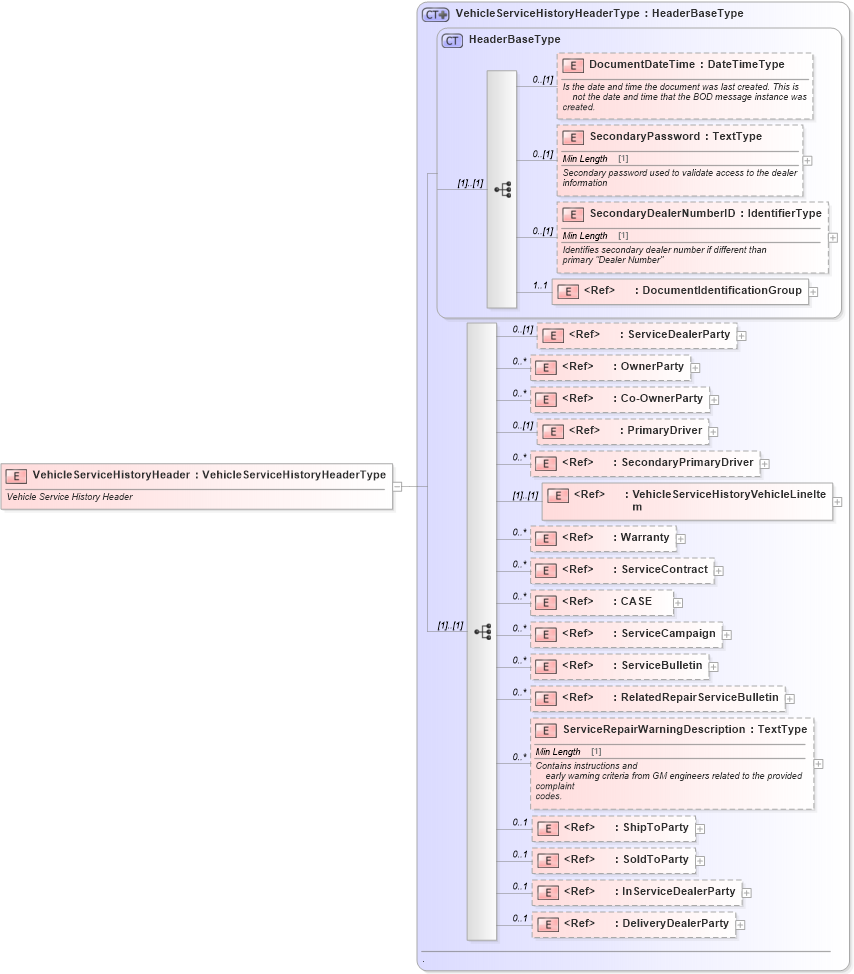

Collapse XSD Schema Diagram:
Drilldown into DeliveryDealerParty in schema components_xsd Drilldown into InServiceDealerParty in schema components_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into ServiceRepairWarningDescription in schema vehicleservicehistory_xsd Drilldown into RelatedRepairServiceBulletin in schema components_xsd Drilldown into ServiceBulletin in schema components_xsd Drilldown into ServiceCampaign in schema components_xsd Drilldown into CASE in schema components_xsd Drilldown into ServiceContract in schema components_xsd Drilldown into Warranty in schema components_xsd Drilldown into VehicleServiceHistoryVehicleLineItem in schema vehicleservicehistory_xsd Drilldown into SecondaryPrimaryDriver in schema components_xsd Drilldown into PrimaryDriver in schema components_xsd Drilldown into Co-OwnerParty in schema components_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into ServiceDealerParty in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into VehicleServiceHistoryHeaderType in schema vehicleservicehistory_xsdXSD Diagram of VehicleServiceHistoryHeader in schema vehicleservicehistory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="VehicleServiceHistoryHeader" type="VehicleServiceHistoryHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Vehicle Service History Header
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
ServiceDealerParty star:ServiceDealerParty 0 (1)
OwnerParty star:OwnerParty 0 unbounded
Co-OwnerParty star:Co-OwnerParty 0 unbounded
PrimaryDriver star:PrimaryDriver 0 (1)
SecondaryPrimaryDriver star:SecondaryPrimaryDriver 0 unbounded
VehicleServiceHistoryVehicleLineItem star:VehicleServiceHistoryVehicleLineItem (1) (1)
Warranty star:Warranty 0 unbounded
ServiceContract star:ServiceContract 0 unbounded
CASE star:CASE 0 unbounded
ServiceCampaign star:ServiceCampaign 0 unbounded
ServiceBulletin star:ServiceBulletin 0 unbounded
RelatedRepairServiceBulletin star:RelatedRepairServiceBulletin 0 unbounded
ServiceRepairWarningDescription star:ServiceRepairWarningDescription 0 unbounded
ShipToParty star:ShipToParty 0 1
SoldToParty star:SoldToParty 0 1
InServiceDealerParty star:InServiceDealerParty 0 1
DeliveryDealerParty star:DeliveryDealerParty 0 1
Collapse Derivation Tree:
