Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: VehicleServiceHistoryVehicleLineItem
Namespace: http://www.starstandard.org/STAR/5
Type: star:VehicleServiceHistoryVehicleLineItemType
Containing Schema: VehicleServiceHistory.xsd
Abstract
Documentation:
Detail information regarding a vehicle for a particular service appointment.

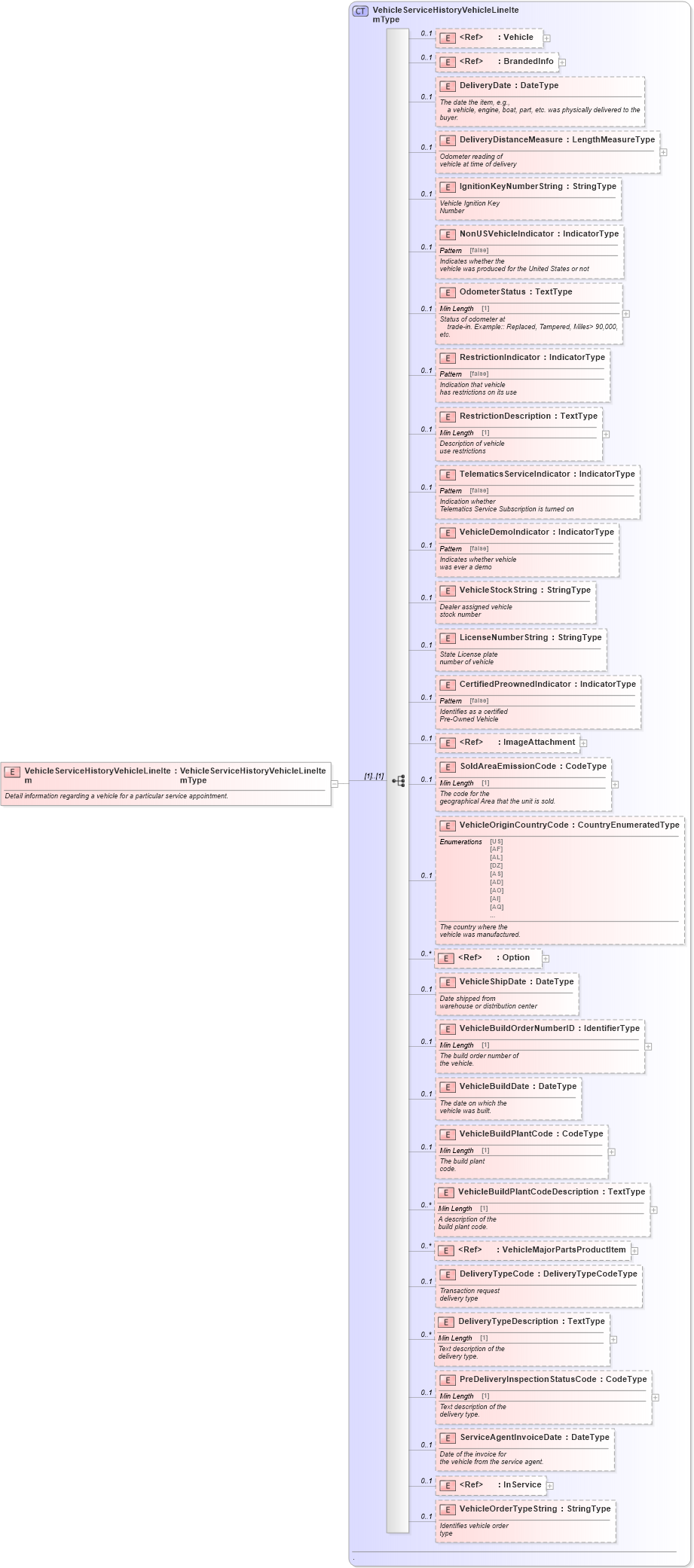

Collapse XSD Schema Diagram:
Drilldown into VehicleOrderTypeString in schema vehicleservicehistory_xsd Drilldown into InService in schema components_xsd Drilldown into ServiceAgentInvoiceDate in schema vehicleservicehistory_xsd Drilldown into PreDeliveryInspectionStatusCode in schema vehicleservicehistory_xsd Drilldown into DeliveryTypeDescription in schema vehicleservicehistory_xsd Drilldown into DeliveryTypeCode in schema vehicleservicehistory_xsd Drilldown into VehicleMajorPartsProductItem in schema components_xsd Drilldown into VehicleBuildPlantCodeDescription in schema vehicleservicehistory_xsd Drilldown into VehicleBuildPlantCode in schema vehicleservicehistory_xsd Drilldown into VehicleBuildDate in schema vehicleservicehistory_xsd Drilldown into VehicleBuildOrderNumberID in schema vehicleservicehistory_xsd Drilldown into VehicleShipDate in schema vehicleservicehistory_xsd Drilldown into Option in schema components_xsd Drilldown into VehicleOriginCountryCode in schema vehicleservicehistory_xsd Drilldown into SoldAreaEmissionCode in schema vehicleservicehistory_xsd Drilldown into ImageAttachment in schema components_xsd Drilldown into CertifiedPreownedIndicator in schema vehicleservicehistory_xsd Drilldown into LicenseNumberString in schema vehicleservicehistory_xsd Drilldown into VehicleStockString in schema vehicleservicehistory_xsd Drilldown into VehicleDemoIndicator in schema vehicleservicehistory_xsd Drilldown into TelematicsServiceIndicator in schema vehicleservicehistory_xsd Drilldown into RestrictionDescription in schema vehicleservicehistory_xsd Drilldown into RestrictionIndicator in schema vehicleservicehistory_xsd Drilldown into OdometerStatus in schema vehicleservicehistory_xsd Drilldown into NonUSVehicleIndicator in schema vehicleservicehistory_xsd Drilldown into IgnitionKeyNumberString in schema vehicleservicehistory_xsd Drilldown into DeliveryDistanceMeasure in schema vehicleservicehistory_xsd Drilldown into DeliveryDate in schema vehicleservicehistory_xsd Drilldown into BrandedInfo in schema components_xsd Drilldown into Vehicle in schema components_xsd Drilldown into VehicleServiceHistoryVehicleLineItemType in schema vehicleservicehistory_xsdXSD Diagram of VehicleServiceHistoryVehicleLineItem in schema vehicleservicehistory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="VehicleServiceHistoryVehicleLineItem" type="VehicleServiceHistoryVehicleLineItemType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Detail information regarding a vehicle for a particular service appointment.
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
BrandedInfo star:BrandedInfo 0 1
DeliveryDate star:DeliveryDate 0 1
DeliveryDistanceMeasure star:DeliveryDistanceMeasure 0 1
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 1
NonUSVehicleIndicator star:NonUSVehicleIndicator 0 1
OdometerStatus star:OdometerStatus 0 1
RestrictionIndicator star:RestrictionIndicator 0 1
RestrictionDescription star:RestrictionDescription 0 1
TelematicsServiceIndicator star:TelematicsServiceIndicator 0 1
VehicleDemoIndicator star:VehicleDemoIndicator 0 1
VehicleStockString star:VehicleStockString 0 1
LicenseNumberString star:LicenseNumberString 0 1
CertifiedPreownedIndicator star:CertifiedPreownedIndicator 0 1
ImageAttachment star:ImageAttachment 0 1
SoldAreaEmissionCode star:SoldAreaEmissionCode 0 1
VehicleOriginCountryCode star:VehicleOriginCountryCode 0 1
Option star:Option 0 unbounded
VehicleShipDate star:VehicleShipDate 0 1
VehicleBuildOrderNumberID star:VehicleBuildOrderNumberID 0 1
VehicleBuildDate star:VehicleBuildDate 0 1
VehicleBuildPlantCode star:VehicleBuildPlantCode 0 1
VehicleBuildPlantCodeDescription star:VehicleBuildPlantCodeDescription 0 unbounded
VehicleMajorPartsProductItem star:VehicleMajorPartsProductItem 0 unbounded
DeliveryTypeCode star:DeliveryTypeCode 0 1
DeliveryTypeDescription star:DeliveryTypeDescription 0 unbounded
PreDeliveryInspectionStatusCode star:PreDeliveryInspectionStatusCode 0 1
ServiceAgentInvoiceDate star:ServiceAgentInvoiceDate 0 1
InService star:InService 0 1
VehicleOrderTypeString star:VehicleOrderTypeString 0 1
Collapse Derivation Tree:
